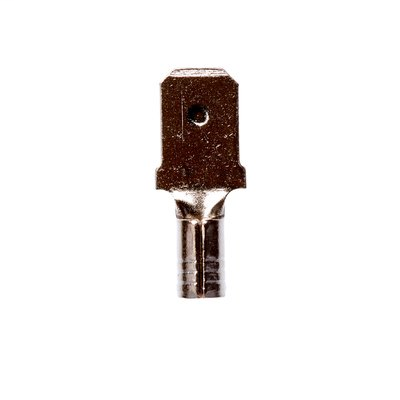

3M MU14-250DMHTX 100/Bottle Non-Insulated High Temperature Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.08/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU14-250DMHTX
North Coast Part # 673630

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • This high-temperature male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable steel for high-temperature applications and has corrosion-resistant nickel plating
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.090 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Material: Non-Insulated

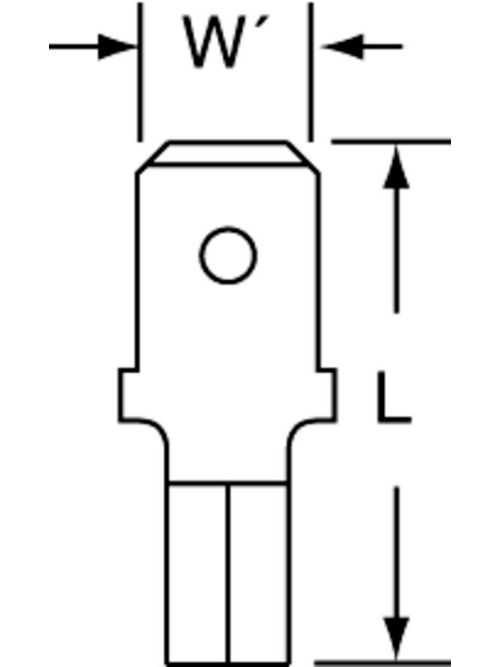

  • Male Tab Width (W'): 0.250 Inch
  • Maximum Conductor Size: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.73 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: High Temp
  • Terminal Type: Standard

Overview

UPC 05112858979
Item Long Description 3M Scotchlok High-Temperature Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Its steel construction offers durability and a nickel-plated finish resists corrosion.
GTiN 00051128589793
Type Disconnect
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.73 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style High Temp
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
Barrel Length 0.25 in
Overall Length 0.73 in
