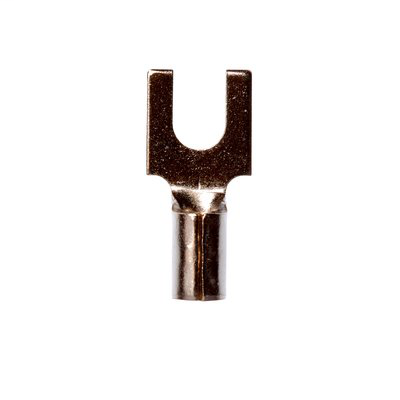

3M MU14-6FBHTK MU14-6FBHTK HIGH TEM
$0.22/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU14-6FBHTK
North Coast Part # 16062

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • 3M™ Scotchlok™ High-Temperature Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
  • Suitable for use in a terminal block
  • 3M™ Scotchlok™ High-Temperature Block Fork Terminal has a non-insulated, butted-seam barrel with a beveled mouth to guide the wire into position easily. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. RoHS 2011/65/EU Compliant.
  • Stud size #6
  • Accommodates wire sizes 16 to 14 AWG
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 1000/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610047708
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.25 Inch
  • Conductor Size: 16 - 14 AWG
  • Dimension E: 0.5 Inch
  • Fork Type: Block
  • Insulation Material: Non-Insulated
  • Manufacturing Origin: USA
  • Material: Copper
  • Overall Length (Imperial): 0.65 in
  • Overall Width (Imperial): 0.3 in
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #6
  • Terminal Style: High Temp
  • Terminal Type: Fork

Overview

UPC 05400701843
GTiN 00054007018438
Type Fork
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.65 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Butted
Material Copper
Terminal Style High Temp
Terminal Type High Temperature,Fork
Conductor Size 14 AWG
Insulation Material Non-Insulated
Barrel Length 0.25 in
Overall Length 0.65 in
