3M MU18-10RHTX MU18-10RHTX RING NON
$0.91/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU18-10RHTX
North Coast Part # 673629

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance

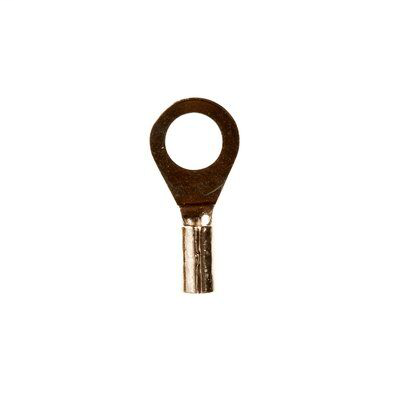

  • 3M™ Scotchlok™ High-Temperature Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
  • Beveled mouth offers easy insertion of wires
  • For use in ovens, motors, light fixtures and other applications
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611466022
  • Manufacturing Origin: USA
  • Brand: Scotchlok™

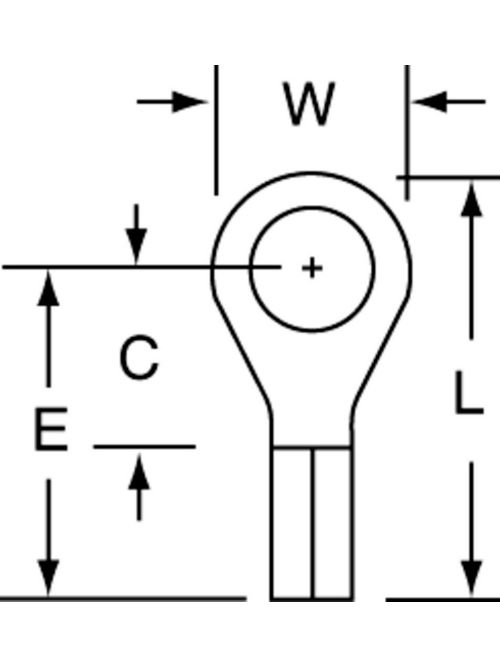

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Overall Length (Imperial): 0.7 in
  • Overall Width (Imperial): 0.33 in
  • Terminal Type: Ring

Overview

UPC 05112858956
GTiN 00051128589564
Type Ring
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.7 in
Width 0.33 in
Thickness 0.03 in
Barrel Type Butted
Material Steel
Terminal Style High Temp
Terminal Type Ring
Conductor Size 22 To 18 AWG
Insulation Material Non-Insulated
Overall Length 0.7 in
