3M MU18-250DF/FLAGX MU18-250DF/FLAG
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.02/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU18-250DF/FLAGX
North Coast Part # 673627

Features

  • Non-insulated, butted-seam barrel with a beveled mouth allows for easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

Specifications

  • Barrel Inside Diameter: 0.075 Inch
  • Barrel Style: Butted
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Non-Insulated
  • Mates with Female Width: 0.250 Inch
  • Mates with Male Tab Width (W'): 0.250 Inch
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.5 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.187
  • Terminal Style: Flag
  • Terminal Type: Flag
  • UL File Number: E70512

Overview

UPC 05112859091

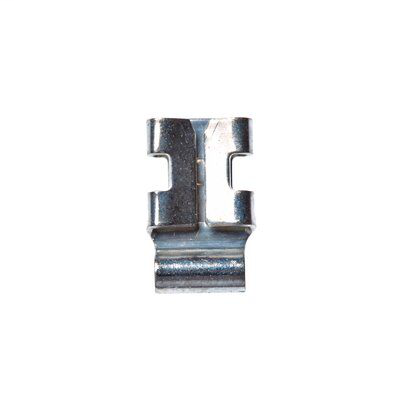

Item Long Description 3M Scotchlok Female Flag Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128590911
Type Disconnect
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.5 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Flag
Terminal Type Disconnect
Conductor Size 18 AWG
Insulation Material Non-Insulated
Overall Length 0.5 in
