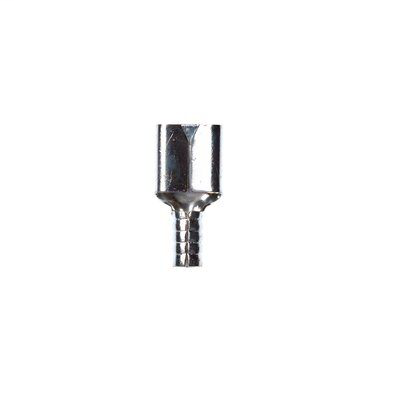

3M MU18-250DFX MU18-250DFX FM DISC
$0.84/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU18-250DFX
North Coast Part # 152390

Features

  • Non-insulated, butted-seam barrel with a beveled mouth offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • 3M™ Scotchlok™ Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
  • Allows for quick and easy disconnect of wires
  • 3M™ Scotchlok™ Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a non-insulated, butted-seam barrel and a beveled mouth to easily guide the wire into position. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464340
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Female
  • Fastener Orientation: Female
  • Insulation Material: Non-Insulated
  • Manufacturing Origin: USA
  • Mates with Female Width: 0.250 Inch
  • Mates with Male Tab Width (W'): 0.250 Inch
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.66 in
  • Pad Width: 0.25 in
  • Solution for: Wireless Network: Infrastructure Accessories
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard

Overview

UPC 05112858788
GTiN 00051128587881
Type Disconnect
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.66 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 18 AWG
Insulation Material Non-Insulated
Overall Length 0.66 in
