Overview

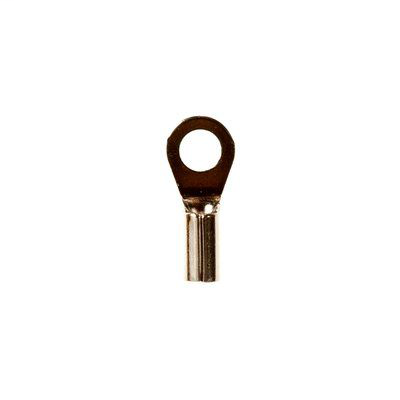

3M™ Scotchlok™ High-Temperature Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
- Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
- Beveled mouth offers easy insertion of wires
- For use in ovens, motors, light fixtures and other applications
- Stud size #6
- Accommodates wire sizes 22 to 18 AWG
- Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
- Withstands a maximum temperature of 900 degrees F (482 degrees C)
- 600V-rated for building wire and 1000V for signs, fixtures or luminaires
- UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
- 100/carton, 500/case
Specifications
- 3M ID: 80611466014
- Barrel Style: Butted
- Brand: Scotchlok™

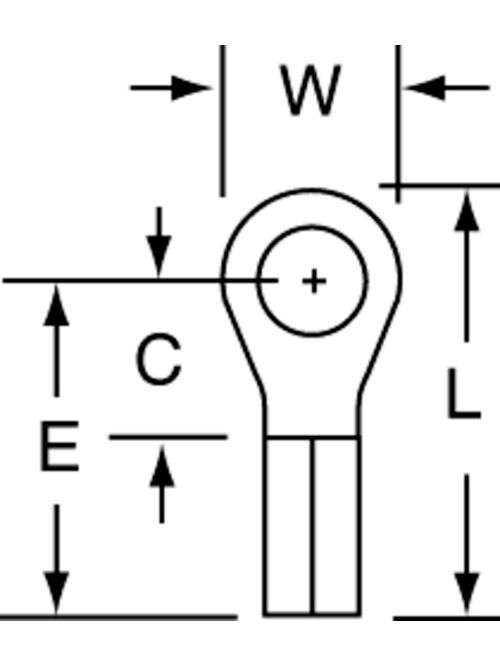

- Clearance (C): 0.22 Inch
- Color: Metal
- Conductor Size: 22 - 18 AWG
- Conductor Sizes: 22 - 18 AWG
- Dimension E: 0.47 Inch
- Insulation Material: Non-Insulated
- Length: 0.6 Inch
- Length (Metric): 15.24 mm
- Material: Steel
- Maximum Operating Temperature (Celsius): 482 Degree Celsius
- Maximum Operating Temperature (Fahrenheit): 900 Degree Fahrenheit
- Maximum Recommended Voltage Rating: 600 V
- Maximum Wire Gauge: 18 AWG
- Minimum Wire Gauge: 22 AWG
- Packaging: 100 per bottle
- RoHS 2011/65/EU Compliant: Yes
- RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
- Solution for: Wireless Network: Infrastructure Accessories
- Stud Size: #6
- Terminal Style: High Temp
- Terminal Type: Ring
- Thickness: 0.03 Inch
- Thickness (Metric): 0.76 mm
- Trademark: Scotchlok
- Type: Standard
- Width: 0.25 Inch
- Width (Metric): 6.35 mm
Legal Disclaimer
- Manufacturing Origin: USA
- The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
- Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
