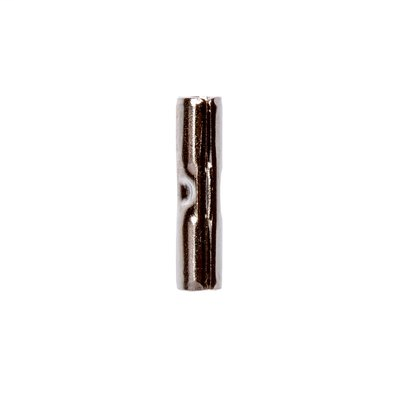

3M MU18BCHTX MU18BCHTX BUTT CONN NO
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.81/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MU18BCHTX
North Coast Part # 673625

Features

  • Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • For use in ovens, motors, light fixtures and other applications
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable steel for high-temperature applications and has nickel plating for corrosion resistance
  • Withstands a maximum temperature of 900 degrees F (482 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

  • Body Material: Stainless Steel
  • Connector Type: Butt
  • Insulation Material: Non-Insulated
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG

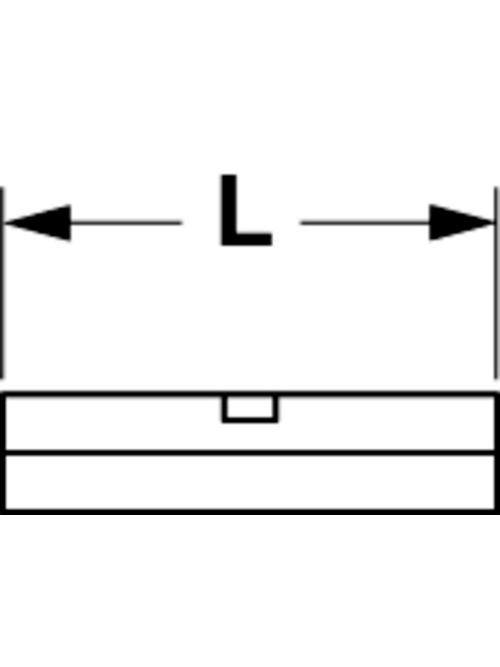

  • Overall Length (Imperial): 0.56 in

Overview

UPC 05112858957
Item Long Description 3M Scotchlok High-Temperature Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a non-insulated, butted-seam barrel and withstands a maximum temperature of 900 degrees F (482 degrees C). Steel construction offers durability and a nickel-plated finish resists corrosion.
GTiN 00051128589571
Type Butt
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.56 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style High Temp
Terminal Type Butt
Conductor Size 22 To 18 AWG
Insulation Material Non-Insulated
Barrel Length 0.25 in
Overall Length 0.56 in
