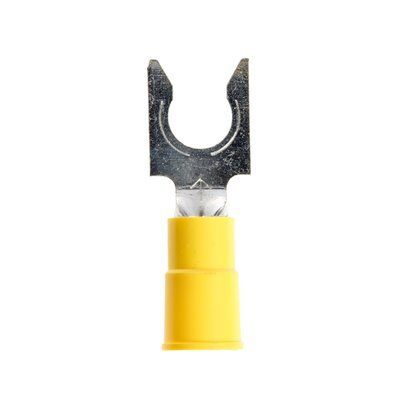

3M MV10-14FLX 50/Bottle Vinyl Insulated Locking Fork
$1.72/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-14FLX
North Coast Part # 673623

Features

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • 3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size 1/4 in
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464746
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • Clearance (C): 0.44 Inch
  • Color Family: Yellow
  • Conductor Size: 12 - 10 AWG
  • Dimension E: 0.99 Inch
  • Fork Type: Locking
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Material: Plastic
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Lock Width: 0.48 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Order Quantity: 50
  • Minimum Wire Gauge: 12 AWG
  • Overall Length (Imperial): 1.24 in
  • Overall Length (Metric): 31.49 mm
  • Overall Width (Imperial): 0.43 in
  • Overall Width (Metric): 10.92 mm
  • Product Color: Yellow
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: 1/4 Inch
  • Terminal Style: Locking
  • Terminal Type: Fork

Overview

UPC 05112858828
GTiN 00051128588284
Length 1.24 in
Finish Tin Plated
Width 0.43 in
Color Yellow
Type Locking
Thickness 0.04 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size 1/4 in
Terminal Style Locking
Terminal Type Fork
Conductor Size 12-10 AWG
Barrel Diameter 0.135 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.55 in
Sub Brand Scotchlok
Voltage null
Overall Length 1.24 in
