3M MV10-38R/SX 50/Bottle Vinyl Insulated Ring

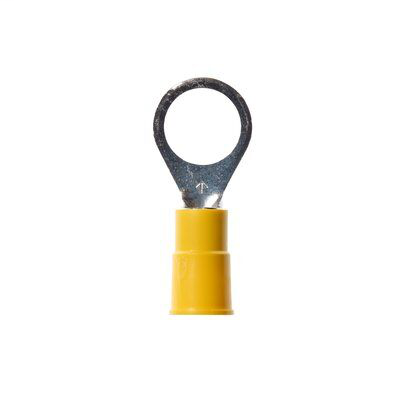

Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.27/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-38R/SX
North Coast Part # 673621

Features

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

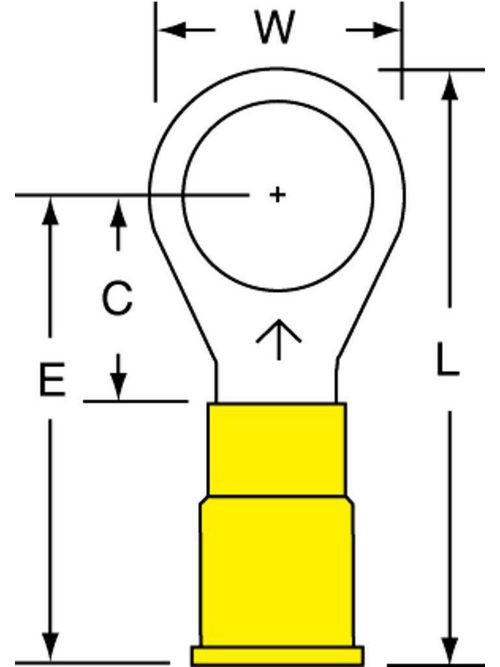

Specifications

  • Color Family: Yellow
  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 1.26 in
  • Overall Length (Metric): 32 mm
  • Overall Width (Imperial): 0.54 in
  • Overall Width (Metric): 13.71 mm
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05112858983
Item Long Description 3M Scotchlok Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128589830
Type Ring
Material PVC
Stud Size 3/8 in
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.26 in
Width 0.54 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
Color Yellow
Max Operating Temperature 105 C
Overall Length 1.26 in
