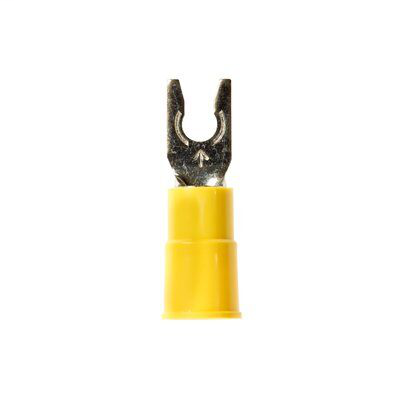

3M MV10-6FLX 50/Bottle Vinyl Insulated Locking Fork
$1.13/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-6FLX
North Coast Part # 673619

Features

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Scotchlok™ Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Spring-like tongue firmly fits around the stud
  • Stud size #6
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464787
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • Clearance (C): 0.28 Inch
  • Conductor Size: 12 - 10 AWG
  • Dimension E: 0.83 Inch
  • Fork Type: Locking
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Maximum Lock Width: 0.30 Inch
  • Minimum Order Quantity: 50
  • Overall Length (Imperial): 1.03 in
  • Overall Width (Imperial): 0.28 in
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #6
  • Terminal Style: Locking
  • Terminal Type: Fork

Overview

UPC 05112858832
GTiN 00051128588321
Type Fork
Material PVC
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.03 in
Width 0.28 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
Overall Length 1.03 in
