3M MV10-6FX MV10-6FX FORK VINYL INS

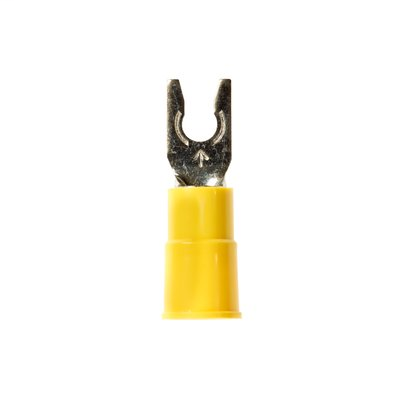

Product image thumbnail 0

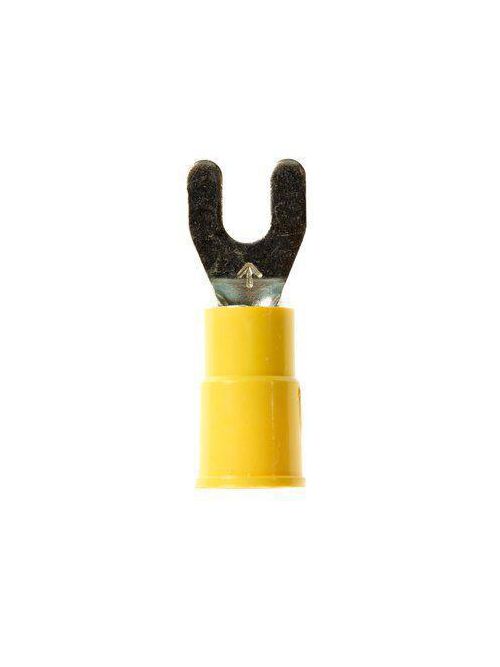

Product image thumbnail 1
Product image thumbnail 2
$1.11/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV10-6FX
North Coast Part # 673616

Features

  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • Stud size #6
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.135 Inch
  • Barrel Style: Brazed
  • Conductor Size: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.84 Inch
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Maximum Conductor Size: 10 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.25 in
  • Minimum Conductor Size: 12 AWG
  • Minimum Order Quantity: 50
  • Overall Length (Imperial): 1.03 in
  • Overall Width (Imperial): 0.38 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #6
  • Terminal Style: Standard
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

GTiN 00051128587614
Type Fork
Material PVC
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Product UPC 05112858761
Length 1.03 Inch
Width 0.38 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Fork
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
Overall Length 1.03 in
