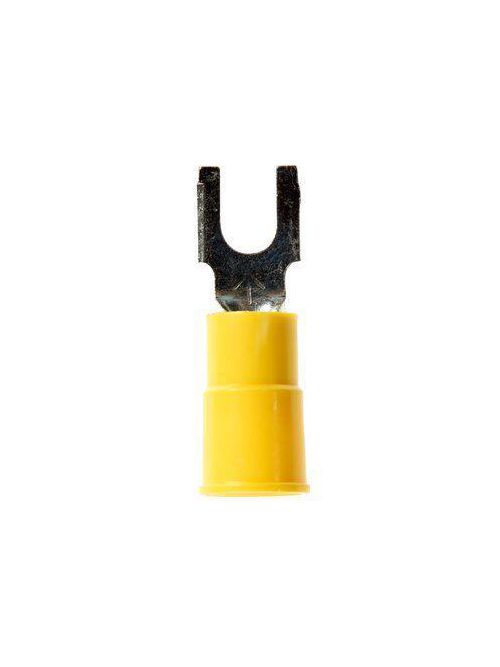

3M MV10-8FBX 50/Bottle Vinyl Insulated Block Fork

Features

• Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Suitable for use in a terminal block
• Stud size #8
• Accommodates wire sizes 12 to 10 AWG
• Electrolytic copper construction offers good conductivity
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 50/carton, 500/case

Specifications

• Barrel Inside Diameter: 0.135 Inch
• Barrel Style: Brazed
• Color Family: Yellow
• Conductor Size: 12 - 10 AWG
• CSA File Number: LR22190
• Dimension E: 0.84 Inch
• Fork Type: Block
• Insulation Material: Vinyl
• Material: ETP Copper
• Maximum Conductor Size: 10 AWG
• Maximum Insulation Outer Diameter (Imperial): 0.25 in
• Maximum Insulation Outer Diameter (Metric): 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Wire Gauge: 10 AWG
• Minimum Conductor Size: 12 AWG
• Minimum Order Quantity: 50
• Minimum Wire Gauge: 12 AWG
• Overall Length (Imperial): 1.03 in
• Overall Length (Metric): 26.162 mm
• Overall Width (Imperial): 0.32 in
• Overall Width (Metric): 8.128 mm
• Product Color: Yellow
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Stud Size: #8
• Terminal Style: Block
• Terminal Type: Fork
• UL File Number: E23438
