3M MV14-10FBX 100/Bottle Vinyl Insulated Block Fork
$0.85/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-10FBX
North Coast Part # 672175

Overview

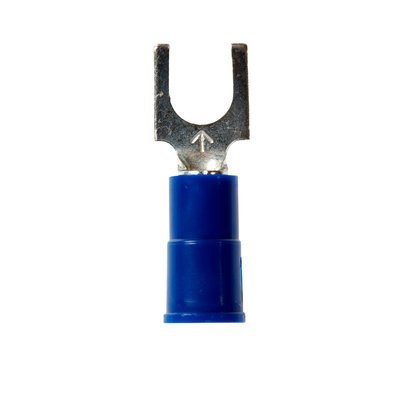

3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611458938
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok™
  • Clearance (C): 0.25 Inch
  • Color: Blue
  • Conductor Size: 16 - 14 AWG
  • Conductor Sizes: 16 - 14 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.70 Inch
  • Insulation Material: Vinyl
  • Length: 0.85 Inch
  • Length (Metric): 21.59 mm
  • Material: ETP Copper
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Wire Gauge: 16 AWG
  • Packaging: 100 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #10
  • Terminal Style: Block
  • Terminal Type: Fork
  • Thickness: 0.03 Inch
  • Thickness (Metric): 0.76 mm
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.3 Inch
  • Width (Metric): 7.62 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858748
GTiN 00051128587485
Length 0.85 in
Finish Tin Plated
Width 0.3 in
Color Blue
Type Fork
Thickness 0.03 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #10
Terminal Style Block
Terminal Type Fork
Conductor Size 16-14 AWG
Barrel Diameter 0.09 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.45 in
Used With Terminal Block
Sub Brand Scotchlok
