3M MV14-14R/SX 100/Bottle Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.08/ea
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-14R/SX
North Coast Part # 673607

Features

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

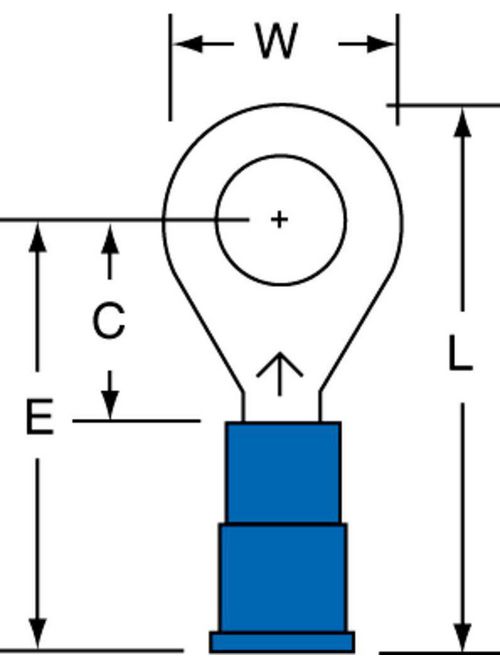

Specifications

  • Color Family: Blue
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 1.08 in
  • Overall Length (Metric): 27.43 mm
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.93 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

UPC 05112858750
Item Long Description 3M Scotchlok Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587508
Length 1.08 in
Width 0.47 in
Color Blue
Type Ring
Thickness 0.03 in
Barrel Type Brazed
Material Plastic
Terminal Style Standard
Terminal Type Ring
Conductor Size 16-14 AWG
Family Brand Name Scotchlok
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Max Operating Temperature 105 C
Sub Brand Scotchlok
Overall Length 1.08 in
