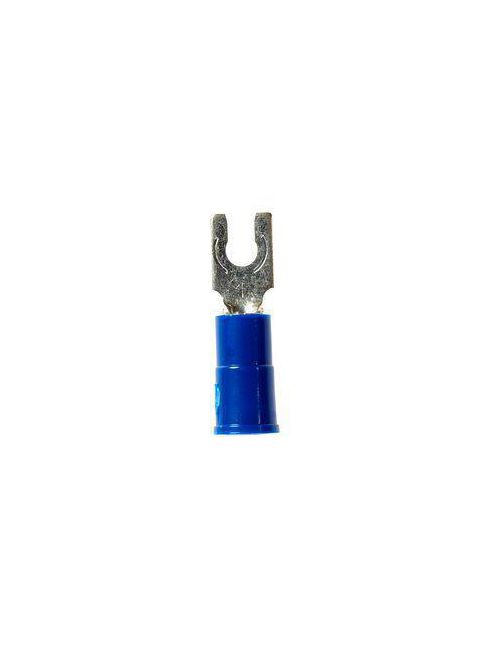

3M MV14-4FLX MV14-4FLX LOCK FORK VI
Product image thumbnail 0
Product image thumbnail 1
$1.03/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-4FLX
North Coast Part # 673605

Features

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Stud size #4
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.090 Inch
  • Barrel Style: Brazed
  • Conductor Size: 16 - 14 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.70 Inch
  • Fork Type: Locking
  • Insulation Material: Vinyl
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.17 in
  • Maximum Lock Width: 0.27 Inch
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.88 in
  • Overall Width (Imperial): 0.25 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #4
  • Terminal Style: Locking
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858838
GTiN 00051128588383
Type Fork
Material PVC
Stud Size 4
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.88 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 14 AWG
Insulation Material Vinyl
Overall Length 0.88 in
