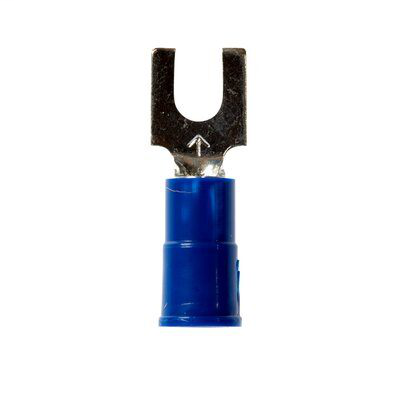

3M MV14-6FBX 100/Bottle Vinyl Insulated Block Fork
$0.85/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-6FBX
North Coast Part # 672176

Features

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • 3M™ Scotchlok™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size #6
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458912
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • Clearance (C): 0.25 Inch
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Dimension E: 0.70 Inch
  • Fork Type: Block
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Material: ETP Copper
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Length (Imperial): 0.85 in
  • Overall Length (Metric): 21.59 mm
  • Overall Width (Imperial): 0.3 in
  • Overall Width (Metric): 7.62 mm
  • Product Color: Blue
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #6
  • Terminal Style: Block
  • Terminal Type: Fork

Overview

UPC 05112858746
GTiN 00051128587461
Length 0.85 in
Finish Tin Plated
Width 0.3 in
Color Blue
Type Fork
Thickness 0.03 in
Barrel Type Brazed Seam
Material ETP Copper
Stud Size #6
Terminal Style Block
Terminal Type Fork
Conductor Size 16-14 AWG
Barrel Diameter 0.09 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Barrel Length 0.45 in
Used With Terminal Block
Sub Brand Scotchlok
Voltage null
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
