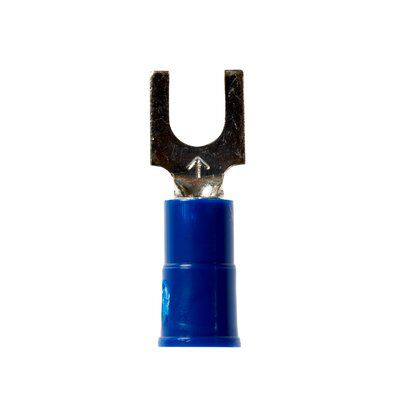

3M MV14-8FBX 100/Bottle Vinyl Insulated Block Fork
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.90/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV14-8FBX
North Coast Part # 672177

Features

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #8
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.090 Inch
  • Barrel Style: Brazed
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.70 Inch
  • Fork Type: Block
  • Insulation Material: Vinyl
  • Material: ETP Copper
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.17 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Length (Imperial): 0.85 in
  • Overall Length (Metric): 21.59 mm
  • Overall Width (Imperial): 0.3 in
  • Overall Width (Metric): 7.62 mm
  • Product Color: Blue
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #8
  • Terminal Style: Block
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

GTiN 00051128587478
Length 0.85 Inch
Finish Tin Plated
Width 0.3 in
Color Blue
Type Fork
Thickness 0.03 in
Barrel Type Brazed
Material PVC
Stud Size 8
Terminal Style Block
Terminal Type Fork
Conductor Size 16 To 14 AWG
Barrel Diameter 0.09 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 16 - 14 AWG
Barrel Length 0.45 in
Used With Terminal Block
Sub Brand Scotchlok
Product UPC 05112858747
Voltage 600 Volt
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
