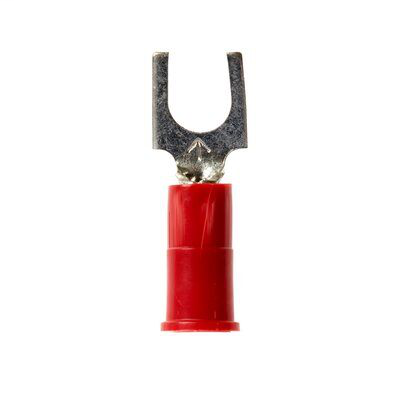

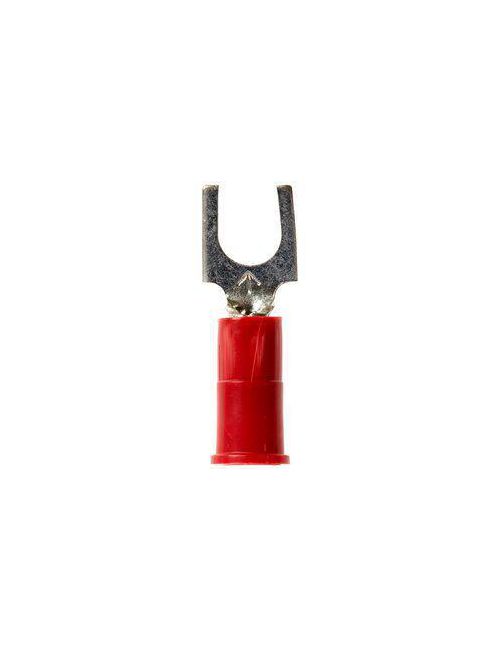

3M MV18-10FBX 100/Bottle Vinyl Insulated Block Fork
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.90/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-10FBX
North Coast Part # 672178

Features

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG

Specifications

  • Manufacturer Catalog Number: 7000133324
  • Barrel Inside Diameter: 0.070 Inch
  • Barrel Style: Brazed
  • Clearance (C): 0.25 Inch
  • Color Family (incorporate Product Color): Red
  • Conductor Size: 22 - 18 AWG
  • Dimension E: 0.70 Inch
  • Fork Type: Block
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Material: ETP Copper
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 Inch
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Wire Gauge: 22 AWG
  • Overall Length (Imperial): 0.85 in
  • Overall Length (Metric): 21.59 mm
  • Overall Width (Imperial): 0.3 in
  • Overall Width (Metric): 7.62 mm
  • Stud Size: #10
  • Terminal Style: Block
  • Terminal Type: Fork

Packaging

  • Package Length: 1.62500 in
  • Package Height: 4.37500 in
  • Package Weight: 0.3961 LBS

Overview

GTiN 00051128587454
Length 0.85 Inch
Finish Tin Plated
Width 0.3 in
Color Red
Type Fork
Thickness 0.03 in
Barrel Type Brazed
Material Copper
Stud Size #10
Terminal Style Block
Terminal Type Fork
Conductor Size 18 AWG
Barrel Diameter 0.070 in
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Barrel Length 0.45 in
Used With Terminal Block
Sub Brand Scotchlok
Product UPC 05112858745
Voltage 600 Volt
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
Country of Origin USA
