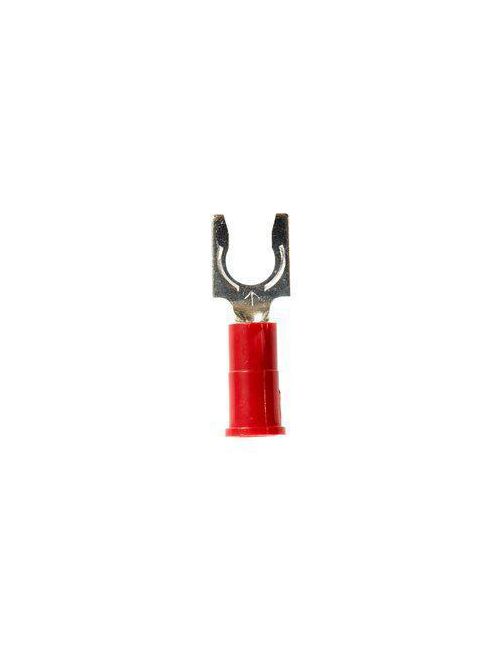

3M MV18-10FLX 100/Bottle Vinyl Insulated Locking Fork
Product image thumbnail 0
Product image thumbnail 1
$0.85/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-10FLX
North Coast Part # 673594

Features

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.070 Inch
  • Barrel Style: Brazed
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.70 Inch
  • Fork Type: Locking
  • Insulation Material: Vinyl
  • Material: Plastic
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Lock Width: 0.35 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 18 AWG
  • Overall Length (Imperial): 0.88 in
  • Overall Length (Metric): 22.35 mm
  • Overall Width (Imperial): 0.32 in
  • Overall Width (Metric): 8.12 mm
  • Product Color: Red
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Locking
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858844
GTiN 00051128588444
Type Fork
Material Plastic
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.88 in
Width 0.32 in
Thickness 0.03 in
Barrel Type Brazed
Stud Size 10
Terminal Style Locking
Terminal Type Fork
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
Color Red
Max Operating Temperature 221 degrees F
Overall Length 0.88 in
