3M MV18-10R/LX 100/Bottle Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
$0.85/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-10R/LX
North Coast Part # 673591

Features

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

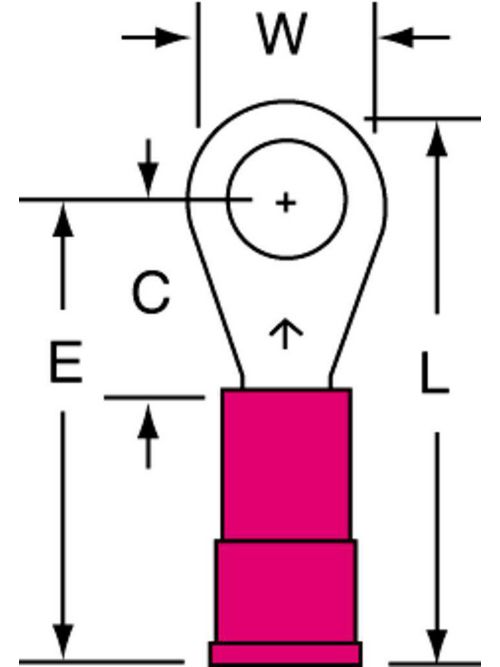

Specifications

  • Color Family: Red
  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 0.93 in
  • Overall Length (Metric): 23.62 mm
  • Overall Width (Imperial): 0.31 in
  • Overall Width (Metric): 7.87 mm
  • Product Color: Red
  • Terminal Type: Ring

Overview

UPC 05112858732
GTiN 00051128587324
Length 0.93 in
Finish Tin Plated
Width 0.31 in
Color Red
Type Ring
Barrel Type Brazed Seam
Material PVC
Stud Size #10
Conductor Size 22-18 AWG
Barrel Diameter 0.07 in ID
Temperature Rating -40 to 105 C
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Barrel Length 0.45 in
Sub Brand Scotchlok
Max Operating Temperature 105 C
Overall Length 0.93 in
Voltage 600 Volt
