3M MV18-14R/SX 100/Bottle Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
$1.05/ea
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-14R/SX
North Coast Part # 673592

Features

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Color Family: Red
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 22 AWG

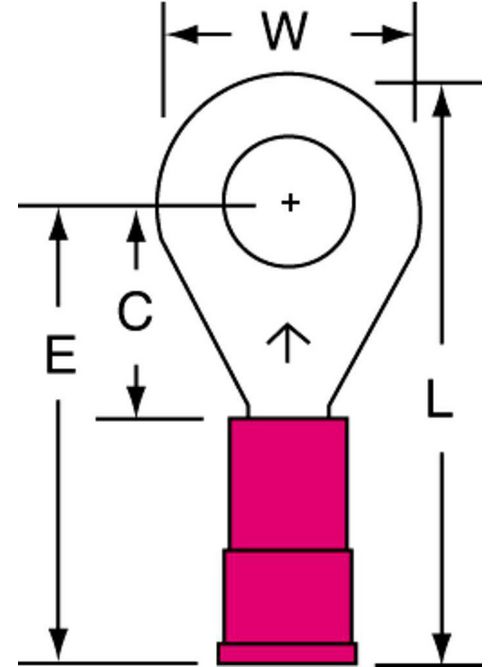

  • Overall Length (Imperial): 1.08 in
  • Overall Length (Metric): 27.43 mm
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.93 mm
  • Product Color: Red
  • Terminal Type: Ring

Overview

UPC 05112858733
GTiN 00051128587331
Length 1.08 in
Finish Tin Plated
Width 0.47 in
Color Red
Type Short Sleeve, Standard
Thickness 0.03 in
Barrel Type Brazed
Material Copper
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 22-18 AWG
Family Brand Name 3M
Insulation Material PVC
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Max Operating Temperature 105 C
Overall Length 1.08 in
