3M MV18-38RX MV18-38RX RING VINYL I
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.11/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-38RX
North Coast Part # 673589

Features

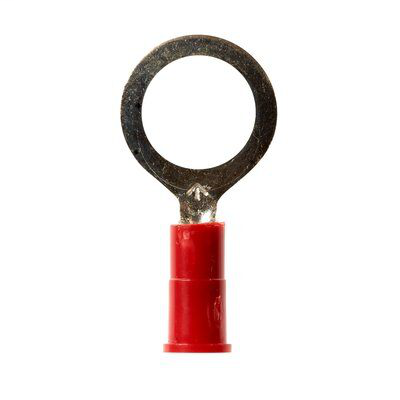

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

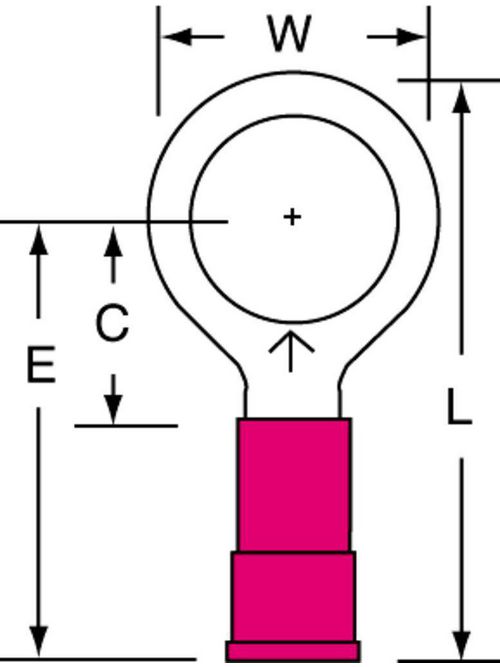

Specifications

  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 1.13 in
  • Overall Width (Imperial): 0.56 in
  • Terminal Type: Ring

Overview

UPC 05112858734
Item Long Description 3M Scotchlok Color-Coded Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587348
Type Ring
Material PVC
Stud Size 3/8 in
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 1.13 in
Width 0.56 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
Overall Length 1.13 in
