3M MV18-610RX MV18-610RX RING, VINY
Product image thumbnail 0
Product image thumbnail 1
$0.88/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-610RX
North Coast Part # 673588

Features

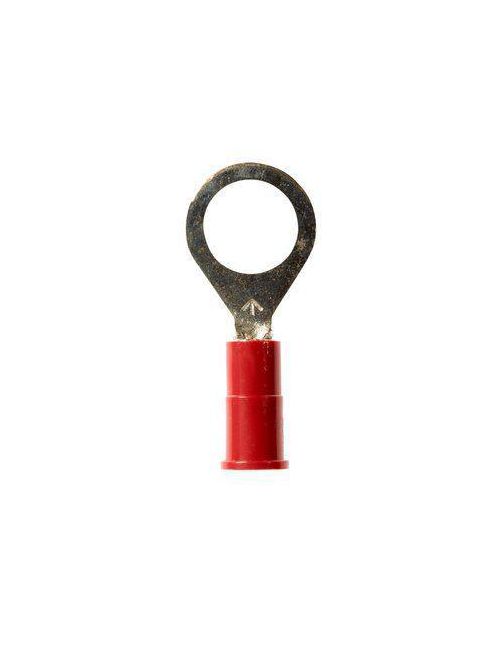

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Multi-Stud Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Multi-stud style ring tongue fits around multiple stud sizes
  • Stud size #6 to #10
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611464142
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Yellow
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 1.01 in
  • Overall Length (Metric): 25.65 mm
  • Overall Width (Imperial): 0.34 in
  • Overall Width (Metric): 8.63 mm
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05112858768
GTiN 00051128587683
Length 1.01 in
Width 0.34 in
Color Yellow
Type Ring
Thickness 0.03 in
Barrel Type Brazed
Material Plastic
Stud Size 6 to 10
Terminal Style Multi-Stud
Terminal Type Ring
Conductor Size 18 AWG
Family Brand Name Scotchlok
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Max Operating Temperature 105 C
Sub Brand Scotchlok
Overall Length 1.01 in
