3M MV18-6FX MV18-6FX FORK VINYL INS
$1.03/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18-6FX
North Coast Part # 673582

Features

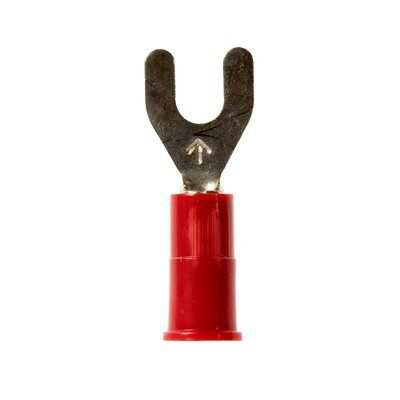

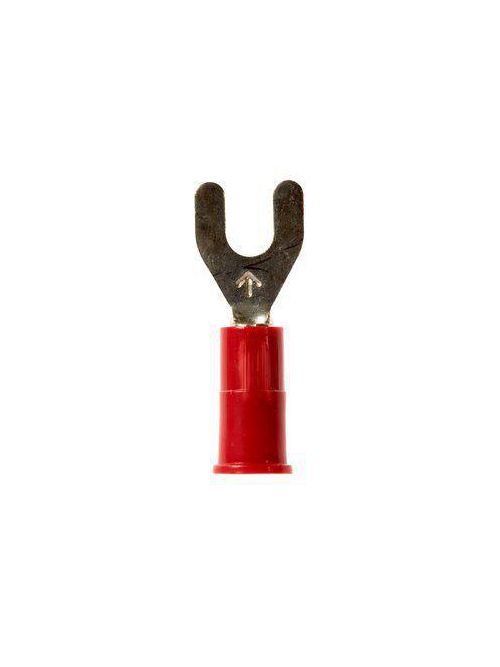

  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Wider-tongue design for use on free-standing studs
  • 3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458805
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • Clearance (C): 0.29 Inch
  • Conductor Size: 22 - 18 AWG
  • Dimension E: 0.74 Inch
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.9 in
  • Overall Width (Imperial): 0.34 in
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #6
  • Terminal Style: Standard
  • Terminal Type: Fork

Overview

UPC 05112858735
GTiN 00051128587355
Type Fork
Material PVC
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.9 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Fork
Conductor Size 18 AWG
Insulation Material Vinyl
Overall Length 0.9 in
