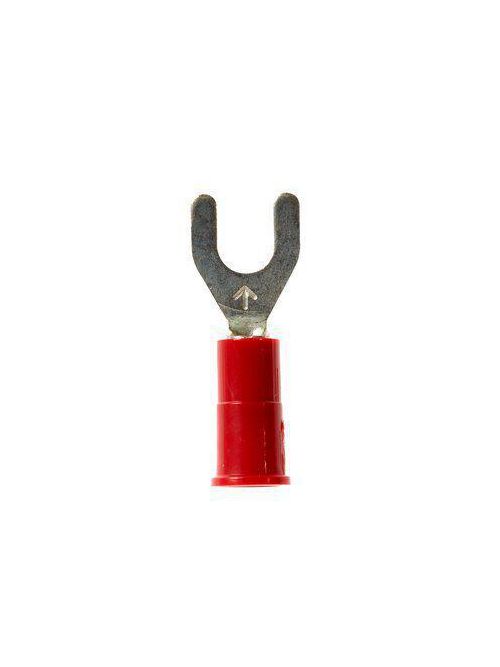

3M MV18-8FX MV18-8FX FORK VINYL INS

Features

• Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Wider-tongue design for use on free-standing studs
• Stud size #8
• Accommodates wire sizes 22 to 18 AWG
• Electrolytic copper construction offers good conductivity
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 100/carton, 500/case

Specifications

• Barrel Inside Diameter: 0.070 Inch
• Barrel Style: Brazed
• Conductor Size: 22 - 18 AWG
• CSA File Number: LR22190
• Dimension E: 0.74 Inch
• Fork Type: Standard
• Insulation Material: Vinyl
• Maximum Conductor Size: 18 AWG
• Maximum Insulation Outer Diameter (Imperial): 0.145 in
• Minimum Conductor Size: 22 AWG
• Minimum Order Quantity: 100
• Overall Length (Imperial): 0.9 in
• Overall Width (Imperial): 0.34 in
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Stud Size: #8
• Terminal Style: Standard
• Terminal Type: Fork
• UL File Number: E23438
