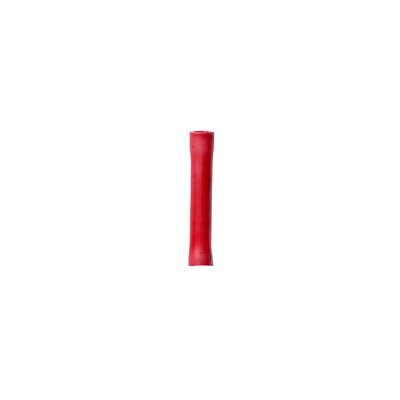

3M MV18BCX 100/Bottle Seamless Vinyl Insulated Butt Connector
$0.75/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV18BCX
North Coast Part # 212685

Features

  • Red vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • 3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, seamless barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.
  • Built-in wire stop for correct positioning
  • 3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. The connector has a vinyl-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 250/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458847
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Red
  • Connector Type: Butt
  • Insulation Material: Vinyl
  • Maximum Conductor Size: 18 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 1.02 in
  • Overall Length (Metric): 25.9 mm
  • Product Color: Red

Overview

UPC 05112858739
GTiN 00051128587393
Length 1.02 in
Color Red
Type Standard
Thickness 0.031 in
Barrel Type Seamless
Material PVC
Terminal Style Standard
Terminal Type Butt
Conductor Size 22-18 AWG
Family Brand Name 3M
Insulation Material Vinyl
Terminal Size 22 - 18 AWG
Barrel Length 0.28 in
Sub Brand Scotchlok
Max Operating Temperature 105 C
Overall Length 1.02 in
