3M MV6BCX MV6BCX BUTT CONN VINYL IN
$3.86/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MV6BCX
North Coast Part # 673581

Overview

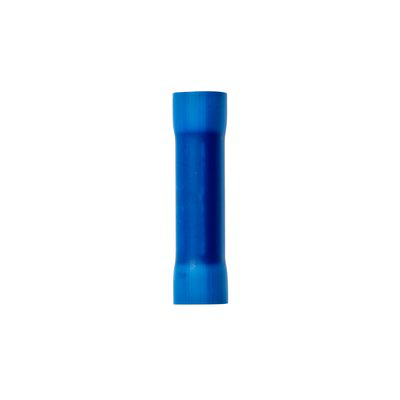

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). The electrolytic copper terminal offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. It has a brazed-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Accommodates wire size 6 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 100/carton, 500/case
  • 10/carton, 100/case

Specifications

  • 3M ID: 80611466378
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.47 Inch
  • Barrel Style: Brazed
  • Brand: Scotchlok
  • Conductor Size: 6 AWG
  • CSA File Number: LR22190
  • Insulation Material: Vinyl
  • Length: 1.71 Inch
  • Maximum Insulation Outer Diameter: 0.400 Inch
  • Packaging: 10 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors
  • Thickness: 0.05 Inch
  • Trademark: Scotchlok
  • UL File Number: E23438

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858991
GTiN 00051128589915
Type Butt
Material PVC
Family Brand Name 3M
Terminal Size 6 AWG
Sub Brand Scotchlok
Length 1.71 in
Thickness 0.05 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Butt Connectors
Conductor Size 6 AWG
Insulation Material Vinyl
Barrel Length 0.47 in
