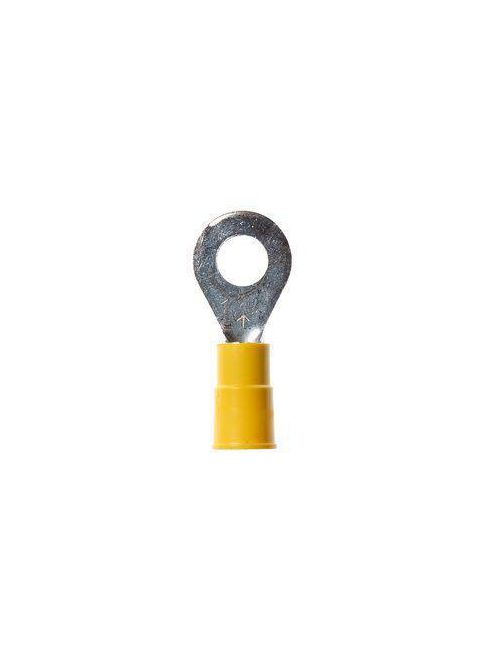

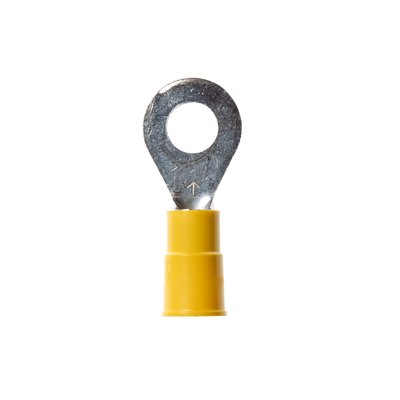

3M MVU10-14R/SX 50/Bottle Vinyl Insulated Ring
$0.67/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU10-14R/SX
North Coast Part # 673571

Specifications

  • Maximum Insulation Outer Diameter: 0.250 Inch
  • Barrel Style: Butted
  • Width: 0.53 Inch
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Conductor Sizes: 12 - 10 AWG
  • Stud Size: 1/4 Inch
  • Terminal Style: Standard
  • Length: 1.26 Inch
  • Clearance (C): 0.44 Inch
  • Brand: Scotchlok
  • CSA File Number: LR22190
  • Thickness: 0.04 Inch
  • Agency Approvals: UL and CSA
  • Dimension E: 0.99 Inch
  • Insulation Material: Vinyl
  • Packaging: 50 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • Terminal Type: Ring
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption

Documents

Categories

Overview

UPC 05112858825
GTiN 00051128588253
Type Ring
Material PVC
Stud Size 1/4 in
Family Brand Name 3M
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.26 in
Width 0.53 in
Thickness 0.04 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
