3M MVU10-38R/SX MVU10-38R/SX RING V
$0.69/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU10-38R/SX
North Coast Part # 673569

Features

  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires

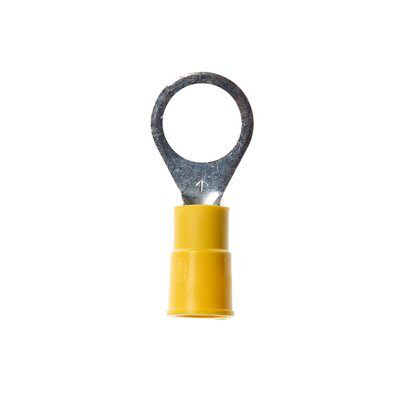

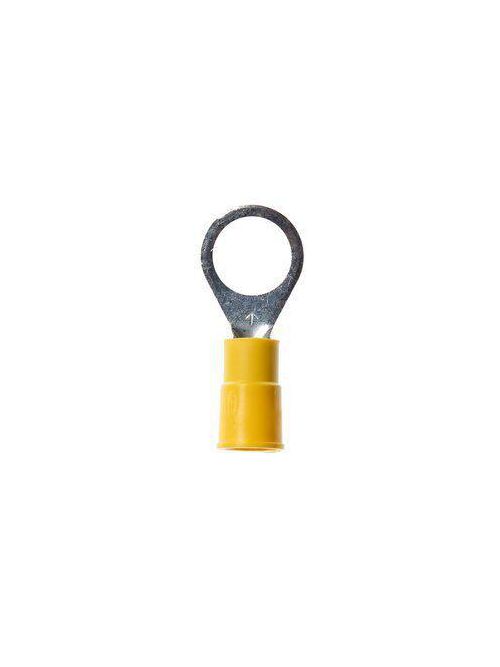

  • 3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465289
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Overall Length (Imperial): 1.26 in
  • Overall Width (Imperial): 0.54 in
  • Terminal Type: Ring

Overview

UPC 05112858882
GTiN 00051128588826
Type Ring
Material PVC
Stud Size 3/8 Inch
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.26 in
Width 0.54 in
Thickness 0.04 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 10 AWG
Insulation Material Vinyl
Overall Length 1.26 in
