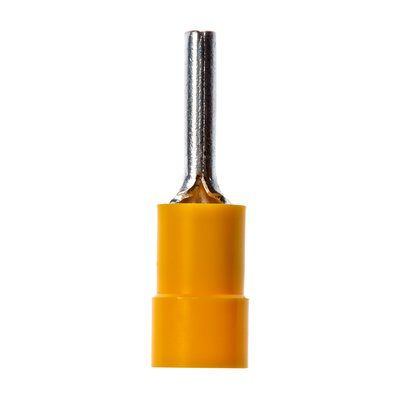

3M MVU10-55PX-A MVU10-55PX-A PIN
Product image thumbnail 0
Product image thumbnail 1
$1.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU10-55PX-A
North Coast Part # 679816

Features

  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Color-Coded Pin Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands a maximum temperature of 167 degrees F (75 degrees C). Copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Pin Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Accommodates wire sizes 12 to 10 AWG
  • Made of copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 167 degrees F (75 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • 3M ID: 80611465099
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color Family: Yellow
  • Conductor Size: 12 - 10 AWG
  • Connection Width (Imperial): 0.11 in
  • Connection Width (Metric): 2.794 mm
  • Dimension E: Pin Length 0.55 inch (13.97 mm)
  • Insulation Material: Vinyl
  • Manufacturing Origin: Taiwan
  • Minimum Order Quantity: 50
  • Overall Length (Imperial): 1.06 in
  • Overall Length (Metric): 26.924 mm
  • Pin Diameter: 0.11 in
  • Pin Length (Imperial): 0.47 in
  • Pin Length (PL): 0.55 Inch
  • Product Color: Yellow
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Type: Pin

Overview

UPC 05112858863
GTiN 00051128588635
Type Pin
Material PVC
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.06 in
Color Yellow
Barrel Type Butted
Terminal Type Pin
Conductor Size 10 AWG
Insulation Material Vinyl
Overall Length 1.06 in
