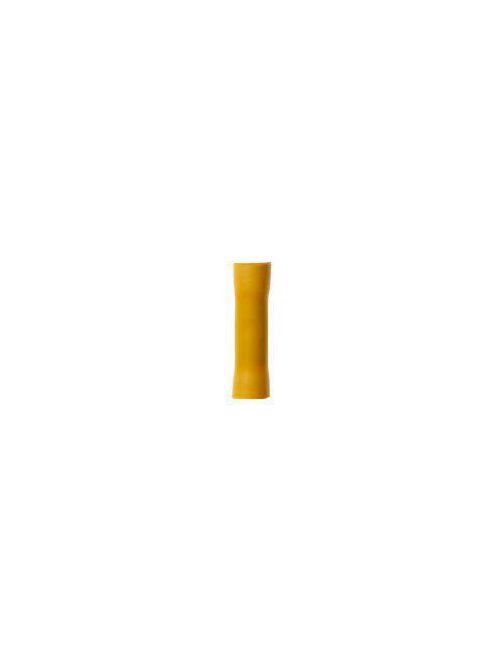

3M MVU10BCX 50/Bottle Vinyl Insulated Butt Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.42/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU10BCX
North Coast Part # 673566

Features

  • Yellow vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

  • Body Material: Copper Alloy
  • Connector Type: Butt
  • Insulation Material: Vinyl
  • Maximum Conductor Size: 10 AWG
  • Minimum Conductor Size: 12 AWG

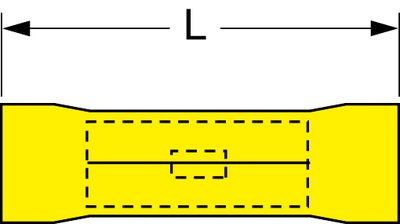

  • Overall Length (Imperial): 1.02 in

Overview

UPC 05112858827
Item Long Description 3M Scotchlok Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128588277
Type Butt
Material PVC
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 1.02 in
Thickness 0.04 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Butt
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
Overall Length 1.02 in
