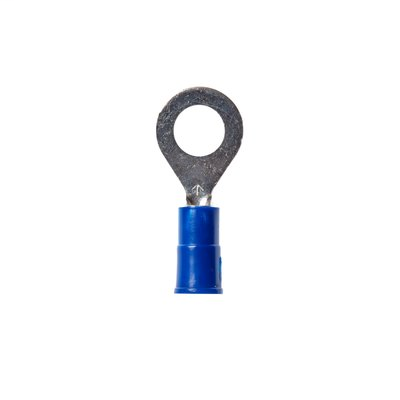

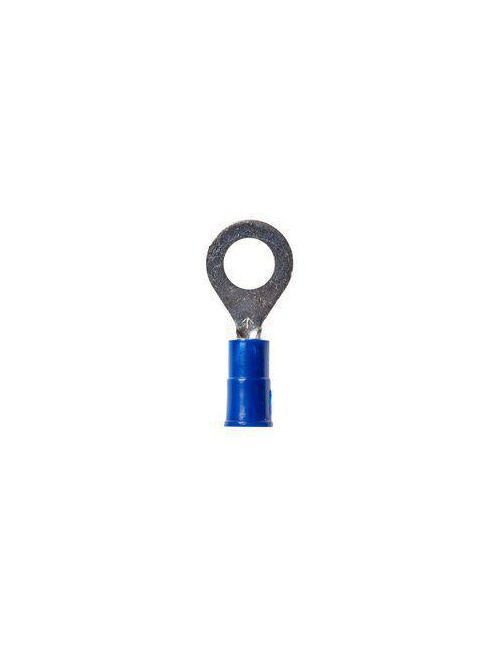

3M MVU14-14R/SX 100/Bottle Vinyl Insulated Ring
$0.55/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU14-14R/SX
North Coast Part # 673562

Specifications

  • Barrel Style: Butted
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • UL File Number: E23438
  • Width: 0.47 Inch
  • Stud Size: 1/4 Inch
  • Insulation Material: Vinyl
  • Conductor Sizes: 16 - 14 AWG
  • RoHS 2011/65/EU Compliant: Yes
  • Trademark: Scotchlok
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Brand: Scotchlok
  • Terminal Style: Standard
  • Length: 1.08 Inch
  • Thickness: 0.03 Inch
  • Clearance (C): 0.40 Inch
  • Terminal Type: Ring
  • Agency Approvals: UL and CSA
  • Dimension E: 0.85 Inch
  • Packaging: 100 per bottle
  • CSA File Number: LR22190

Documents

Overview

UPC 05112858820
GTiN 00051128588208
Type Ring
Material PVC
Stud Size 1/4 in
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 1.08 in
Width 0.47 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
