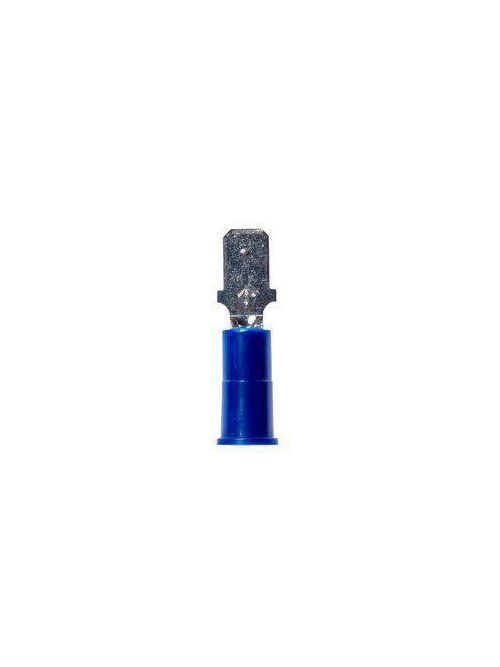

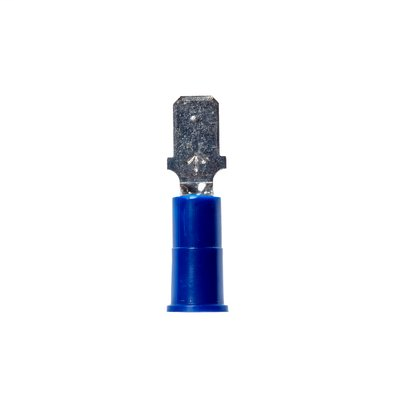

3M MVU14-187DMX 100/Bottle Vinyl Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
$1.05/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU14-187DMX
North Coast Part # 673561

Features

  • Blue vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.187-in wide female tab
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.080 Inch
  • Barrel Style: Butted
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connection Width (Imperial): 0.187 in
  • Connection Width (Metric): 4.75 mm
  • CSA File Number: LR22190
  • Diameter (D): 0.39 Inch
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Color: Blue
  • Insulation Material: Vinyl
  • Male Tab Width (W'): 0.187 Inch
  • Material: Plastic
  • Maximum Conductor Size: 14 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 16 AWG
  • Overall Diameter (Imperial): 0.39 in
  • Overall Length (Imperial): 0.85 in
  • Overall Length (Metric): 21.59 mm
  • Product Color: Blue
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard
  • UL File Number: E70512
  • Voltage Application: Low Voltage

Overview

UPC 05112858674
GTiN 00051128586747
Type Disconnect
Material Plastic
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.85 in
Thickness 0.02 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
Color Blue
Diameter 0.39 in
Max Operating Temperature 221 degrees F
Overall Length 0.85 in
