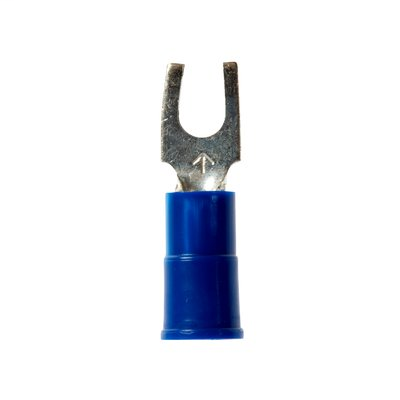

3M MVU14-6FB/SX Block Fork Vinyl In
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU14-6FB/SX
North Coast Part # 673557


  • Length: 0.85 Inch
  • Thickness: 0.03 Inch
  • Packaging: 100 per bottle
  • Insulation Material: Vinyl
  • Terminal Style: Block
  • Dimension E: 0.70 Inch
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Conductor Sizes: 16 - 14 AWG
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • CSA File Number: LR22190
  • Brand: Scotchlok
  • Agency Approvals: UL and CSA
  • Barrel Style: Butted
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: 6
  • Terminal Type: Fork
  • RoHS 2011/65/EU Compliant: Yes
  • Width: 0.25 Inch
  • Clearance (C): 0.25 Inch



UPC 05112858886
GTiN 00051128588864
Type Fork
Material PVC
Stud Size 6
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.85 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Block
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
