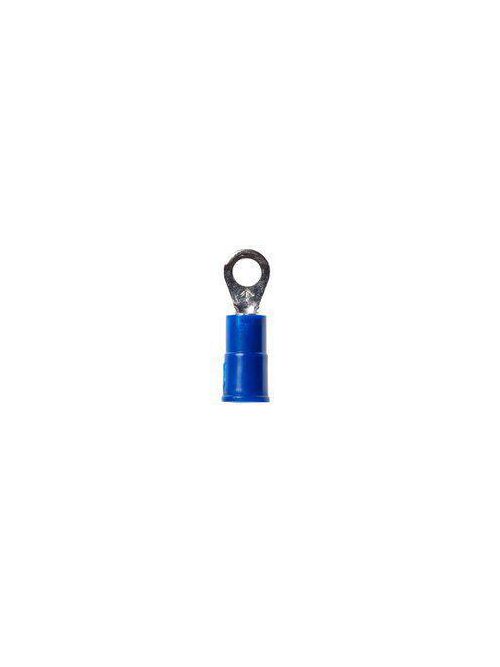

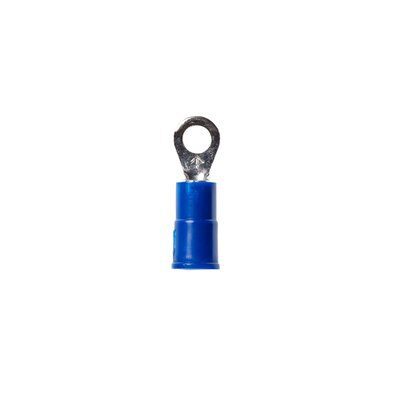

3M MVU14-6R/SX MVU14-6R/SX RING VIN

Features

• Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• 3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Standard-style ring tongue fits around the stud
• Stud size #6
• Accommodates wire sizes 16 to 14 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 100/carton, 500/case

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611464647
• Manufacturing Origin: USA
• Brand: Scotchlok™
• Connection Width (Imperial): 0.138 in
• Connection Width (Metric): 3.5 mm
• Maximum Conductor Size: 14 AWG
• Minimum Conductor Size: 16 AWG
• Overall Length (Imperial): 0.8 in
• Overall Width (Imperial): 0.25 in
• Terminal Type: Ring
