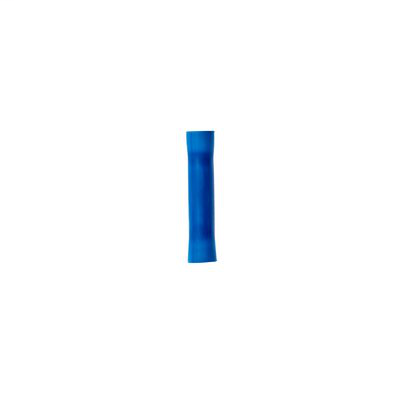

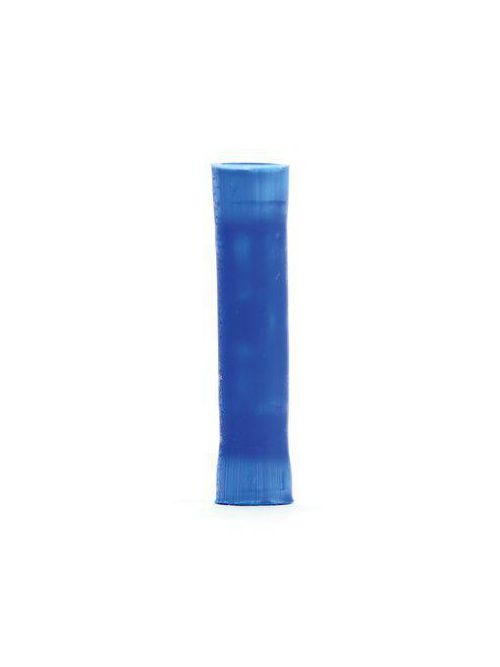

3M MVU14BCX 100/Bottle Vinyl Insulated Butt Connector
$0.32/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU14BCX
North Coast Part # 673552

Overview

3M™ Scotchlok™ Color-Coded Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Butt Connector is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

  • 3M ID: 80611464696
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.25 Inch
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color: Blue
  • Conductor Size: 16 - 14 AWG
  • Conductor Sizes: 16 - 14 AWG
  • Connection Type: Butt
  • CSA File Number: LR22190
  • Insulation Material: Vinyl
  • Length: 1 Inch
  • Length (Metric): 25.4 mm
  • Material: ETP Copper
  • Maximum Insulation Outer Diameter: 0.170 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 14 AWG
  • Minimum Wire Gauge: 16 AWG
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Packaging: 100 per bottle
  • Product Type: Connector
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors
  • Thickness: 0.03 Inch
  • Thickness (Metric): 0.762 mm
  • Trademark: Scotchlok
  • UL File Number: E23438

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858823
GTiN 00051128588239
Type Butt
Material ETP Copper
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 1 in
Color Blue
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Butt Connectors
Product Type Connector
Conductor Size 16-14 AWG
Connection Type Butt
Insulation Material Vinyl
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
