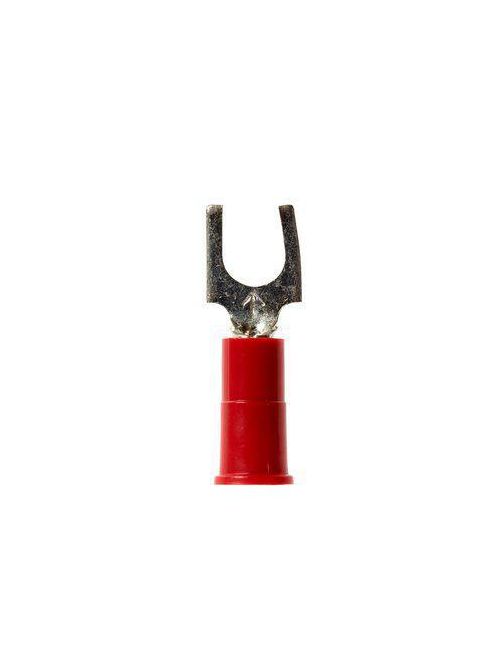

3M MVU18-10FBX 100/Bottle Vinyl Insulated Block Fork
Product image thumbnail 0
Product image thumbnail 1
$0.35/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU18-10FBX
North Coast Part # 673550

Specifications

  • RoHS 2011/65/EU Compliant: Yes
  • Barrel Style: Butted
  • Terminal Style: Block
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • CSA File Number: LR22190
  • UL File Number: E23438
  • Width: 0.3 Inch
  • Conductor Sizes: 22 - 18 AWG
  • Trademark: Scotchlok
  • Brand: Scotchlok
  • Agency Approvals: UL and CSA
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Clearance (C): 0.25 Inch
  • Insulation Material: Vinyl
  • Dimension E: 0.70 Inch
  • Stud Size: 10
  • Length: 0.85 Inch
  • Packaging: 100 per bottle
  • Terminal Type: Fork
  • Thickness: 0.03 Inch

Documents

Overview

UPC 05112858816
GTiN 00051128588161
Type Fork
Material PVC
Stud Size 10
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.85 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Block
Terminal Type Fork
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
