3M MVU18-10FK MVU18-10FK VINYL INS
$0.39/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU18-10FK
North Coast Part # 489071

Features

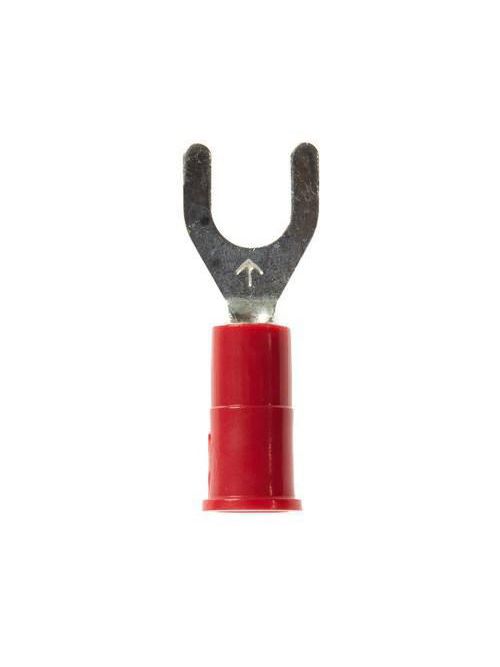

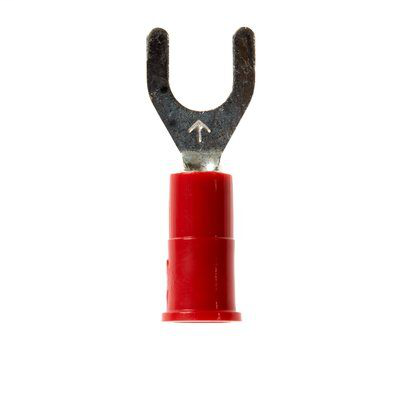

  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 3M™ Scotchlok™ Color-Coded Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Scotchlok™ Standard Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Wider-tongue design for use on free-standing studs
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 1000/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610037428
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Clearance (C): 0.29 Inch
  • Conductor Size: 22 - 18 AWG
  • Dimension E: 0.74 Inch
  • Fork Type: Standard
  • Insulation Material: Vinyl
  • Manufacturing Origin: USA
  • Overall Length (Imperial): 0.9 in
  • Overall Width (Imperial): 0.34 in
  • Solution for: Wireless Network: Infrastructure Accessories
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Fork

Overview

UPC 05400701178
GTiN 00054007011781
Type Fork
Material PVC
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.9 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Fork
Conductor Size 18 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
Overall Length 0.9 in
