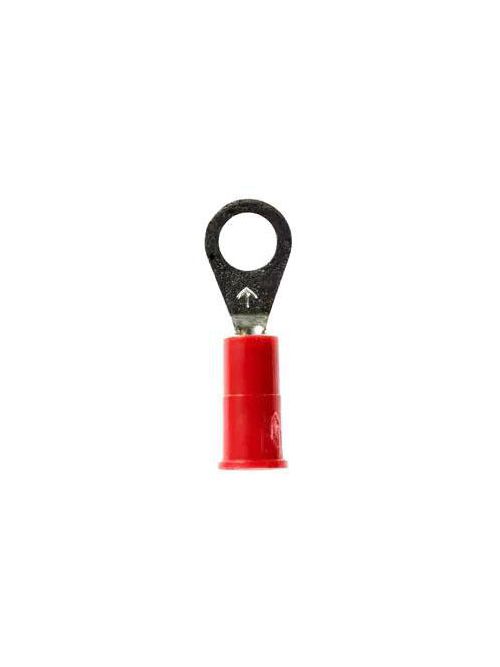

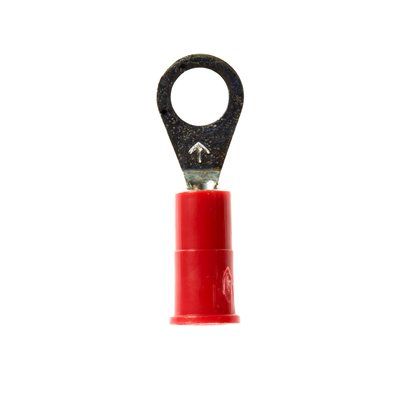

3M MVU18-10RX 100/Bottle Vinyl Insulated Ring
$0.43/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU18-10RX
North Coast Part # 673549

Specifications

  • Agency Approvals: UL and CSA
  • Terminal Type: Ring
  • CSA File Number: LR22190
  • Insulation Material: Vinyl
  • UL File Number: E23438
  • RoHS 2011/65/EU Compliant: Yes
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Packaging: 100 per bottle
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Thickness: 0.03 Inch
  • Width: 0.31 Inch
  • Trademark: Scotchlok
  • Terminal Style: Standard
  • Dimension E: 0.74 Inch
  • Conductor Sizes: 22 - 18 AWG
  • Barrel Style: Butted
  • Clearance (C): 0.29 Inch
  • Length: 0.9 Inch
  • Brand: Scotchlok
  • Stud Size: 10

Documents

Overview

UPC 05112858853
GTiN 00051128588536
Type Ring
Material PVC
Stud Size 10
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.9 in
Width 0.31 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
