3M MVU18-250DFX 100/Bottle Vinyl Insulated Female Disconnect
$1.04/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU18-250DFX
North Coast Part # 673546

Overview

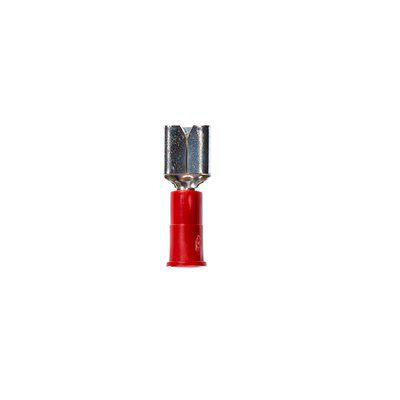

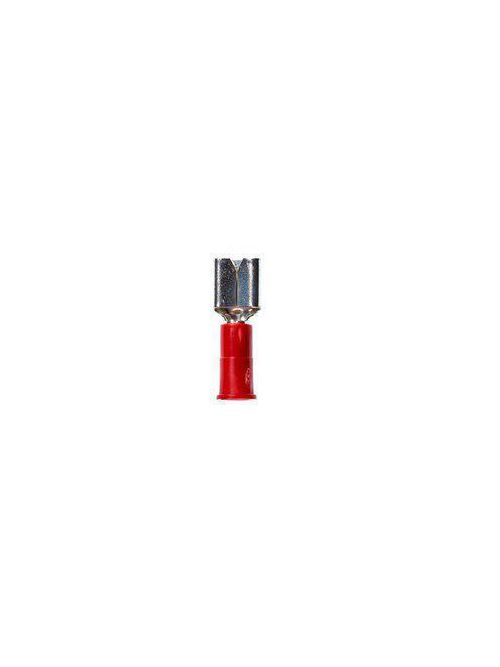

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Color-Coded Standard Female Disconnect Terminal attaches to the mating part with a tongue that slips over the male tab. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve. The polyvinyl chloride sleeve serves to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The vinyl-sleeve insulation is abrasion-resistant and flared to ensure easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Red vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide male tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611464365
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.25 Inch
  • Barrel Style: Butted
  • Brand: Scotchlok™
  • Color: Red
  • Conductor Size: 22 - 18 AWG
  • Conductor Sizes: 22 - 18 AWG
  • Connection Type: Wire
  • Connector Style: Insulation Displacement
  • CSA File Number: LR22190
  • Diameter: 0.23 Inch
  • Diameter (Metric): 5.8
  • Fastener Orientation: Female
  • Flame Retardant: No
  • Insulation Material: Vinyl
  • Length: 0.87 Inch
  • Length (Metric): 22.09 mm
  • Material: ETP Copper
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Wire Gauge: 22 AWG
  • National Stock Number: 5940004361632
  • Packaging: 100 per bottle
  • Pad Width: 0.25 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Solution for: Wireless Network: Infrastructure Accessories
  • Terminal Style: Standard
  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Thickness (Metric): 0.81 mm
  • Trademark: Scotchlok
  • UL File Number: E70512
  • Width: 0.37 Inch
  • Width (Metric): 9.4

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858790
GTiN 00051128587904
Type Disconnect
Material ETP Copper
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.87 in
Width 0.37 in
Color Red
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 22-18 AWG
Connection Type Wire
Insulation Material Vinyl
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
