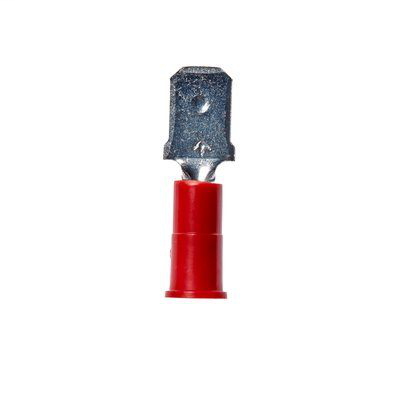

3M MVU18-250DMX 100/Bottle Vinyl Insulated Male Disconnect
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.08/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU18-250DMX
North Coast Part # 673545

Features

  • Red vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Mates with 0.25-in wide female tab
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.065 Inch
  • Barrel Style: Butted
  • Color Family: Red
  • Conductor Size: 22 - 18 AWG
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • CSA File Number: LR22190
  • Diameter (D): 0.39 Inch
  • Disconnect Type: Male
  • Fastener Orientation: Male
  • Insulation Color: Red
  • Insulation Material: Vinyl
  • Male Tab Width (W'): 0.250 Inch
  • Material: Plastic
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 22 AWG
  • Overall Diameter (Imperial): 0.39 in
  • Overall Length (Imperial): 0.93 in
  • Overall Length (Metric): 23.6 mm
  • Product Color: Red
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Tab Width: 0.250
  • Terminal Style: Standard
  • Terminal Type: Standard
  • UL File Number: E70512
  • Voltage Application: Low Voltage

Overview

UPC 05112858782
Item Long Description 3M Scotchlok Color-Coded Standard Male Disconnect Terminal offers superior holding force while allowing for quick and easy disconnect. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587829
Type Disconnect
Material Plastic
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.93 in
Color Red
Diameter 0.39 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Disconnect
Conductor Size 22-18 AWG
Insulation Material Vinyl
Max Operating Temperature 221 degrees F
Overall Length 0.93 in
