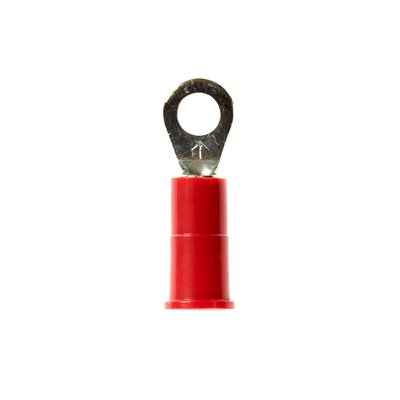

3M MVU18-6R/SX MVU18-6R/SX RING VIN
$0.35/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU18-6R/SX
North Coast Part # 673543

Specifications

  • Conductor Sizes: 22 - 18 AWG
  • Terminal Type: Ring
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Stud Size: 6
  • Dimension E: 0.67 Inch
  • Thickness: 0.03 Inch
  • Terminal Style: Standard
  • UL File Number: E23438
  • Trademark: Scotchlok
  • Width: 0.25 Inch
  • Insulation Material: Vinyl
  • Clearance (C): 0.22 Inch
  • Length: 0.8 Inch
  • CSA File Number: LR22190
  • RoHS 2011/65/EU Compliant: Yes
  • Packaging: 100 per bottle
  • Barrel Style: Butted
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption

Documents

Overview

UPC 05112858814
GTiN 00051128588147
Type Ring
Material PVC
Stud Size 6
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.8 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
