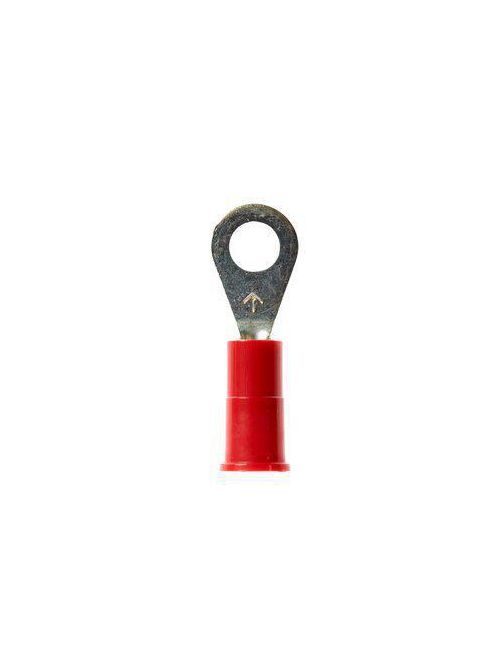

3M MVU18-8R/SX 100/Bottle Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.36/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MVU18-8R/SX
North Coast Part # 673542

Features

  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #8
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Connection Width (Imperial): 0.164 in
  • Connection Width (Metric): 4.166 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 0.8 in
  • Overall Width (Imperial): 0.25 in
  • Terminal Type: Ring

Overview

GTiN 00051128588529
Type Ring
Material PVC
Stud Size 8
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Product UPC 05112858852
Length 0.8 Inch
Width 0.25 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
Overall Length 0.8 in
