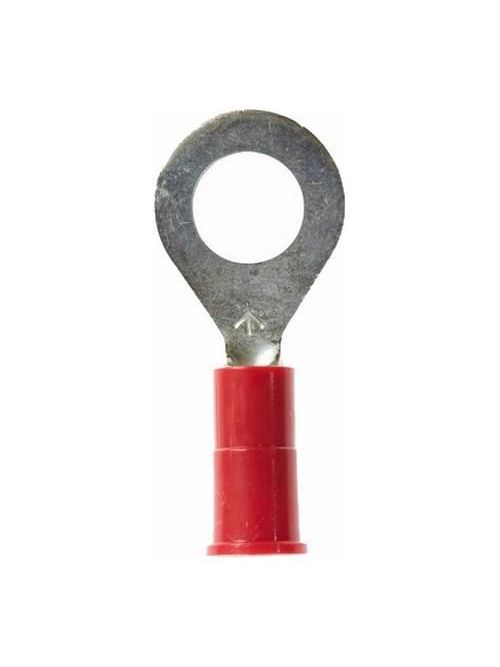

3M RV18-14Q Highland 25/Bag Vinyl Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
$9.59/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # RV18-14Q
North Coast Part # 878029

Features

  • Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/bag

Specifications

  • Barrel Inside Diameter: 0.07 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Length (Metric): 6.35 mm
  • Barrel Style: Butted
  • Conductor Size: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.85 Inch
  • Dimension E (Metric): 21.59
  • Insulation Material: Vinyl
  • Material: Plastic
  • Maximum Conductor Size: 18 AWG
  • Maximum Insulation Outer Diameter (Imperial): 0.145 in
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Stud Diameter (Imperial): 0.25 in
  • Minimum Stud Diameter (Metric): 6.35 mm
  • Minimum Wire Gauge: 22 AWG
  • Overall Length (Imperial): 1.08 in
  • Overall Length (Metric): 27.432 mm
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.938 mm
  • Product Key: HIGH HIGHLAND BAGGED TERMINALS FKD
  • Ring Type: en-US: Standard
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: 1/4 Inch
  • Stud Size (Metric): 635
  • Stud Sizes: 1/4 Inch
  • Terminal Style: Standard
  • Terminal Type: Ring
  • UL File Number: E23438

Overview

UPC 05112860044
GTiN 00051128600443
Color Red
Type Ring Terminal
Material Plastic
Wire Size 16-14 AWG
Family Brand Name Scotchlok
Terminal Size 8
TC Connection Ring
Sub Brand Highland
Length 1.08 in
Width 0.47 in
Thickness 0.03 in
Barrel Type Butted
Terminal Style Standard
Terminal Type Ring
Conductor Size 22-18 AWG
Insulation Material Vinyl
Max Operating Temperature 221 degrees F
Barrel Length 0.25 in
Overall Length 1.08 in
