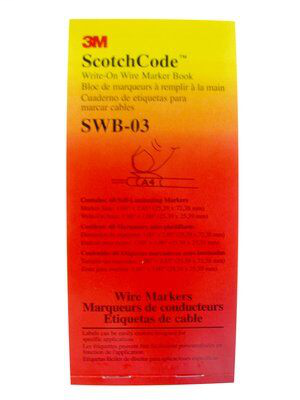

3M Electrical SWB-3 1 x 2.85 Inch Label Write-On Wire Marker Book
$26.52/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # SWB-3
North Coast Part # 151219

Features

  • Self-laminating, write-on markers
  • Designed for small volume applications involving special or complex legends that are hand written at the job site
  • 3M™ ScotchCode™ Write-On Wire Marker Books SWB contain self-laminating, write-on markers designed for small volume applications involving special or complex legends that are hand written at the job site.
  • 3M™ ScotchCode™ Write-On Wire Marker Books SWB are available in four different sizes: SWB-01: 0.5" x 0.5" write-on area SWB-02: 0.75" x 0.75" write-on area SWB-03: 1.0" x 1.0" write-on area with 2.85" marker size length SWB-04: 1.0" x 1.0" write-on area with 5.0" marker size length
  • Available in four different size options

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611436124
  • Adhesive Material: Acrylic
  • Application: Marking Wire and Cable
  • Brand: 3M™
  • Cable Outside Diameter Range: 0.32 - 0.58 inch
  • Cable Outside Diameter Range (Metric): 8-15 mm
  • Color Family: White
  • Dispenser/Marker Type: Write-On Book
  • Manufacturing Origin: USA
  • Marker ID Style: Write-on
  • Marker Size: 1.0 inch x 2.85 inch
  • Marker Type: Books
  • Material: Plastic
  • Maximum Cable Diameter (Imperial): 0.58 in
  • Maximum Cable Diameter (Metric): 14.7 mm
  • Maximum Cable Outside Diameter: 0.32 - 0.58 Inch
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 49 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 120 Degree Fahrenheit
  • Maximum Outside Diameter: 0.58 in (14.7 mm)
  • Maximum Recommended Voltage Rating: 600 V
  • Minimum Cable Diameter (Imperial): 0.32 in
  • Minimum Cable Diameter (Metric): 8 mm
  • Minimum Order Quantity: 5
  • Operating Temperature Range (Celsius): -40 °C to 121 °C
  • Overall Length (Metric): 2.43 m
  • Overall Width (Metric): 5.46 mm
  • Printed Text Type: Write-on
  • Product Color: White
  • Product Type: Identification
  • Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: CO/POP || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul
  • Tape Color: White
  • UV Resistant: No
  • Wire Gauge Range: Wire O.D. 0.32 in to 0.58 in (8.1 mm to 14.7 mm)
  • Wire Marker Products: Wire Marker Books
  • Write-on Area Size (Imperial): 1.0 inch x 1.0 inch
  • Write-on Area Size (Metric): 25.4 x 25.4 mm

Overview

UPC 05400749906
GTiN 00054007499060
Length 2.43 m
Size 1.0" x 2.85"
Type Write-On Book
Applications Wire Marking
Wire Size 0.320.58"
Family Brand Name 3M
Sub Brand ScotchCode
Width 5.46 mm
Adhesive Type Acrylic
Tape Color White
Color White
Material Plastic
Max Operating Temperature 120 degrees F
Overall Length 2.43 m
