3M UP2(CART) 22-26 AWG BUTT CONN (D
$39.11/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # UP2(CART)
North Coast Part # 822183

Overview

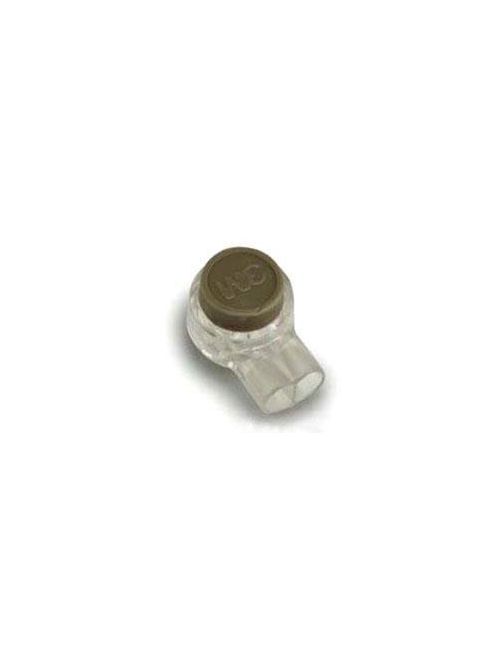

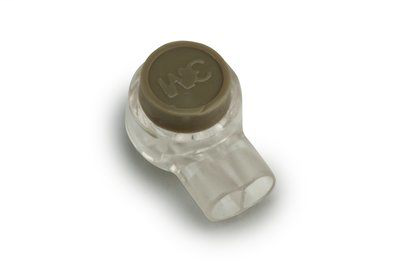

3M™ Scotchlok™ IDC Butt Connector UP2 is a flame-retardant connector. It withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C).

3M™ Scotchlok™ IDC Butt Connector UP2 is designed to accommodate 2 conductors. This connector is designed for use on PIC, pulp and paper cable where moisture resistance is not required. UL Recognized Component.

  • Designed to accept 2 conductors
  • Flame retardant
  • 0.06-in O.D. insulation
  • Accommodates 26 to 22 AWG conductor sizes
  • Durable polycarbonate construction
  • Comes in gray color
  • Withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C)
  • 1,600 connectors (10 boxes of 10 cartridges with 16 connectors each)

Specifications

  • 3M ID: 80610096721
  • Cable Type: PIC, PULP, PAPER
  • Composition: Dry
  • Connector Type: Butt/2 Conductor
  • Family: Scotchlok
  • Flame Retardant: Yes
  • Insulation Outside Diameter: 0.06 Inch
  • Operating Temperature Range (Celsius): -40 °C to +60 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 140 °F
  • Packaging: 1,600 connectors (10 boxes of 10 cartridges with 16 connectors each)
  • Product Type: Connector
  • Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Wireless Network: Backhaul
  • Trademark: Scotchlok
  • Wire Gauge: 26 - 22 AWG

Overview

UPC 05400732698
GTiN 00054007326984
Family Brand Name 3M
Product Type Connector
Wire Size 26-22 AWG
Connection Type Butt/2 Conductor
