3M UR2-D(CART) 19-26 AWG BUTT CONNE
Product image thumbnail 0
Product image thumbnail 1
$21.99/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # UR2-D(CART)
North Coast Part # 1347212

Overview

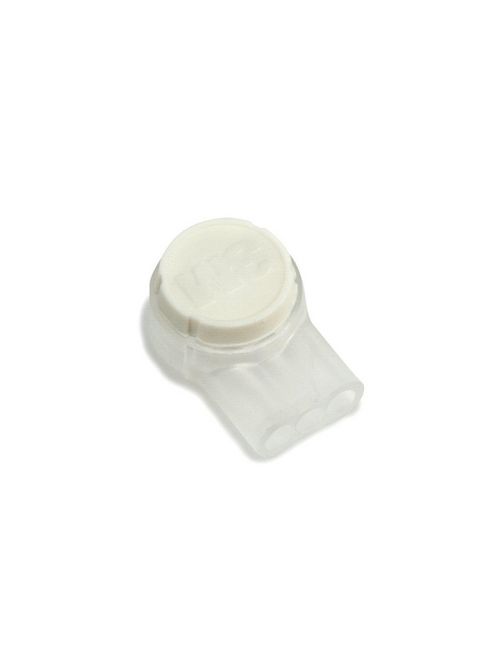

3M™ Scotchlok™ IDC Butt Connector UR2-D is filled with a sealant which offers immense resistance to moisture. It withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C).

3M™ Scotchlok™ IDC Butt Connector UR2-D is designed to accommodate 2 or 3 conductors of different wire gauges. This connector is ideal for use on PIC, pulp and paper cables.

  • Designed to accept 2 or 3 conductors
  • Solvent-resistant
  • 0.082-in O.D. insulation
  • Accommodates 26 to 19 AWG conductor sizes
  • Durable polypropylene construction
  • Comes in white color
  • Withstands a temperature range of -40 to 140 degrees F (-40 to 60 degrees C)
  • 1,000 connectors (10 boxes of 10 cartridges with 10 connectors each)

Specifications

  • 3M ID: 80610578249
  • Cable Type: PIC, PULP, PAPER
  • Composition: Dry
  • Connector Type: Butt/2 or 3 Conductor
  • Family: Scotchlok
  • Flame Retardant: No
  • Insulation Outside Diameter: 0.082 Inch
  • Operating Temperature Range (Celsius): -40 °C to +60 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 140 °F
  • Packaging: 1,000 connectors (10 boxes of 10 cartridges with 10 connectors each)
  • Product Type: Connector
  • Solution for: Access Network: FTTH/FTTB/CATV, Access Network: xDSL, Wireless Network: Backhaul
  • Trademark: Scotchlok
  • Wire Gauge: 26 - 19 AWG

Overview

UPC 05400771475
GTiN 00054007714750
Family Brand Name 3M
Product Type Connector
Wire Size 26-19 AWG
Connection Type Butt/2 Or 3 Conductor
