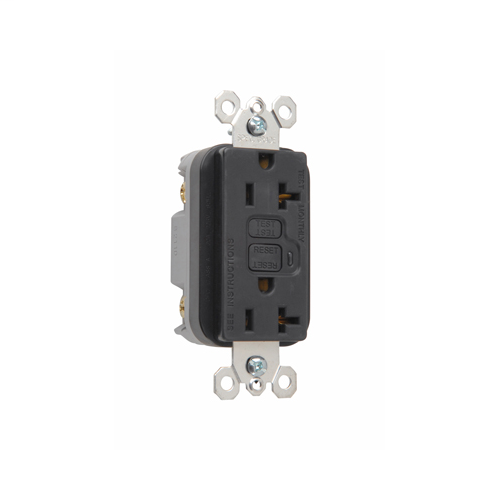

Product image for Pass & Seymour 2095-BK GFCI Receptacle, 10Ka SCCR,20A/125Vac, Black
Image thumbnail 0
Image thumbnail 1
Email

Pass & Seymour 2095-BK GFCI Receptacle, 10Ka SCCR,20A/125Vac, Black

Manufacturer: Legrand / Pass & Seymour | Catalog # 2095BK | North Coast Part # 405981
$31.11/ea
ea
Order in multiples of 10 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet
From the innovator of the product category, comes a full range of Pass & Seymour GFCI receptacles to enhance safety, shorten installation times and increase productivity on the jobsite. With high-impact-resistant, thermoplastic construction, our spec-grade GFCI are the most durable GFCI available.

Technical Information

Amperage
20 Amp
Connection Type
Screw Terminal
Grade
Specification
Material
Thermoplastic
Mounting Type
Flush
NEMA
5-20R
Style
Decorator
Type
Decorator
Voltage
125 Volt

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
SafeLock

General Product Info

12-Digit UPC
785007423440
Color
Black
Finish
Matte
GTiN
00785007423440
Product UPC
78500742344

Dimensions

Depth
0.98 Inch
Height
4.2 Inch
Length
4.2 Inch
Width
1.72 in
Features & Benefits
  • High-impact-resistant thermoplastic construction.
  • For covering patents, see www.legrand.us/patents.
  • Trip indicator light (red LED).
  • Exceeds UL943 voltage surge requirements; survives 100x the required UL 3kA/6kV voltage surge test cycles.
  • 1/4\" thinner than competitors' GFCIs; leaves more room for wires in the box.
  • FSUL Listed (Federal Specification WC596).
  • 10kA short circuit rating.
  • Supplied with matching TP26 nylon wall plate.
  • Two back wire holes per terminal.
  • Button colors match the device face.
  • Extra-long strap.
  • Side or internal screw-pressure-plate back wire with #10 #14 AWG solid or stranded copper wire.
  • Tri-drive screws.
  • Dual-direction test and reset buttons.
  • Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly.
  • Ground screw has a back wire clamp for easy installation.
  • GFCIs with Auto-Ground assure a positive ground to metal box.
  • Mounting screws are shipped captive in the device and wall plate for easier installation.
  • SafeLock™ Protection: if critical components are damaged and ground fault protection is lost, power to receptacle is disconnected.
  • Class A rated GFCI.
