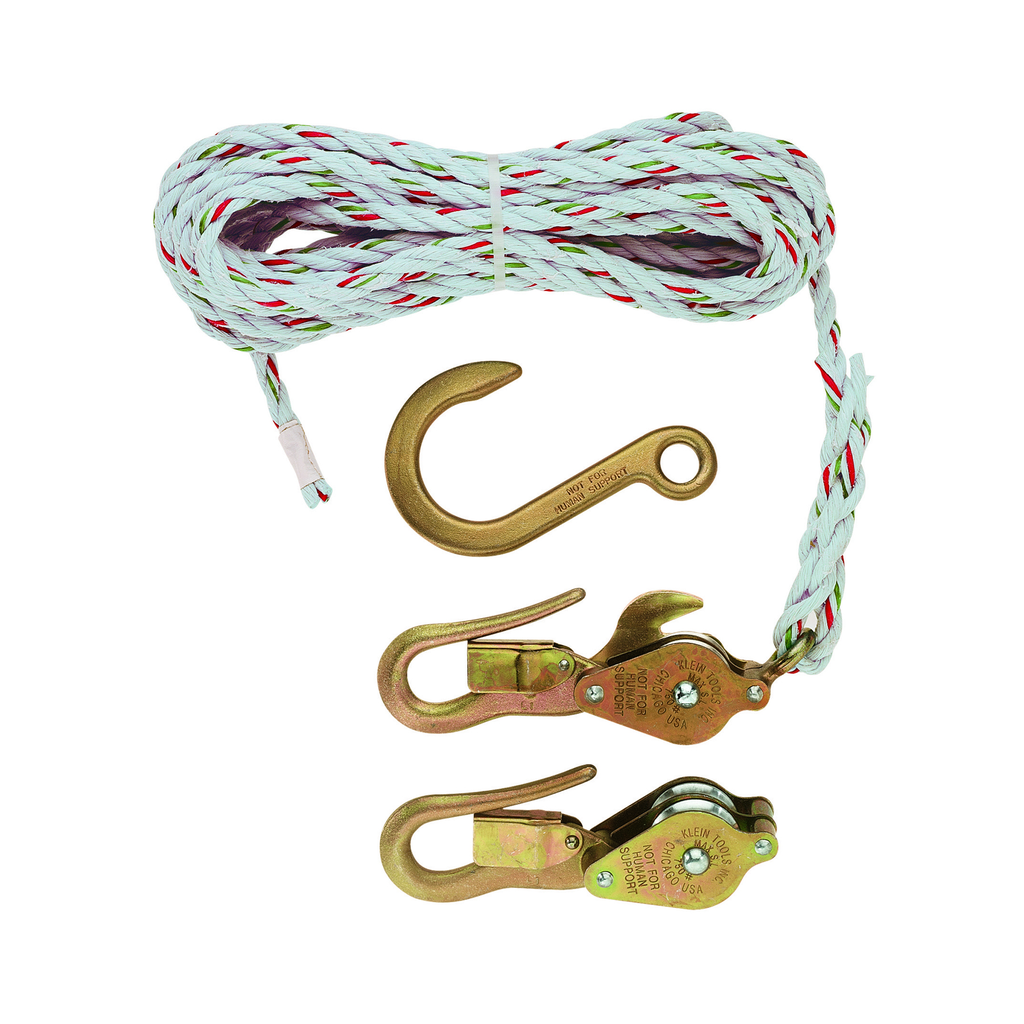

Klein Tools H1802-30SR 25 Foot x 3/8 Inch 750 lb Galvanized Steel/Aluminum Alloy Rope Block and Tackle with Rope Sliced

Manufacturer: Klein Tool | Catalog # H1802-30SR | North Coast Part # 411938
$133.17/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 11 to 17 days
Specification Sheet
All Klein block and tackle use high-quality, 3/8'' (10 mm) diameter rope. Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load. This package features two blocks with an anchor hook with a maximum safe load is 750 lbs. (340 kg).

Technical Information

Applications
Available with a guarded forged anchor hook with the nose lengthened to extend over the latch or keeper.
Blade Dimensions
12.33 in L x 4-1/2 in W x 4.41 in H
Material
Steel
Type
Block & Tackle with Guarded Hooks

Manufacturer Information

Family Brand Name
Klein Tools

General Product Info

GTiN
00092644480270
Product UPC
09264448027
Weight
2.8 lb

Dimensions

Depth
12.33 Inch
Height
4.41 Inch
Overall Length
12.33
Width
4.500 in

Certifications and Compliance

CA Prop65 Warning
WARNING: Cancer and Reproductive Harm See www.P65Warnings.ca.gov for more information.
Warnings
  • These are NOT occupational protective devices. Do NOT use for human support.
  • Hooks fit under insulator and engage pin on cross arm
  • These are NOT occupational protective hooks. NOT for human support
  • Maximum safe load is 750-pound (340 kg)
  • Light, galvanized-steel shell blocks are fitted with snubbing hooks to hold the load
  • Sheaves are strong yet lightweight aluminum alloy with all-bronze bushings
  • 25-foot (7.62 m) rope length is spliced to the block
