Thomas & Betts 18RA-6FCP Fork Tongue Terminal

Manufacturer: Thomas & Betts | Catalog # 18RA-6FCP | North Coast Part # 418374
$224.24/c (100 ea)
ea
Order in multiples of 20 (pack qty)
Log in or register to view your price, purchase history, and more!
Next Day Delivery not avail / contact sales for lead times & return policy
Specification Sheet Brochure Product Catalog Page

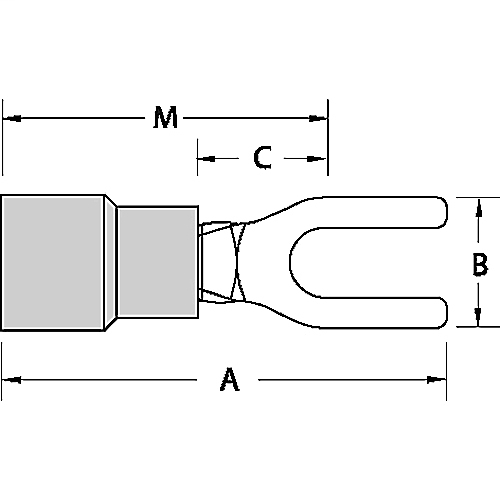

Vinyl-Insulated Fork Terminal, Length .94 Inches, Width .25 Inches, Maximum Insulation .150, Bolt Hole #6, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated, Mini-Pack

Technical Information

Conductor Size
22-16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Type
Insulated Vinyl
Material
Copper
Standard
CSA,E2186,UL
Stud Size
#6
Temperature Rating
105 degrees C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210899022
Color
Red
Finish
Electro Tin Plated
GTiN
05414363935551
Product UPC
78621089902

Dimensions

Height
3.2 Inch
Thickness
.03 in
Width
3.1 in
Features
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
Certifications
  • CSA
  • UL
